- Overview
Overview

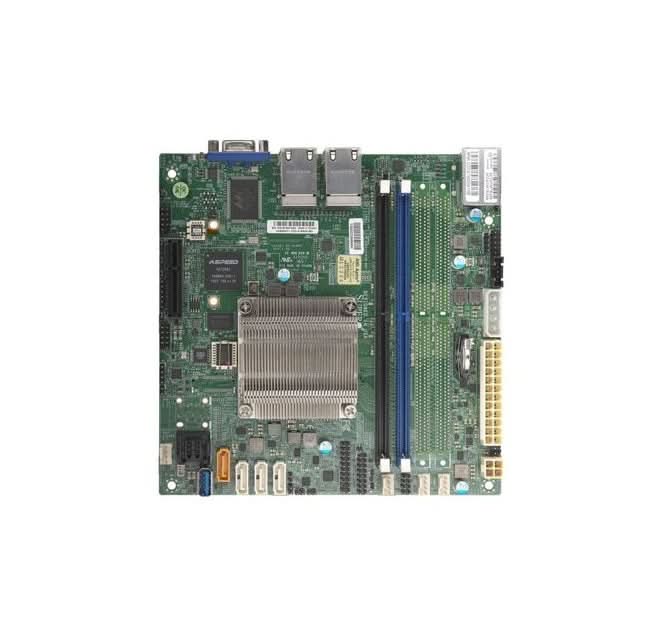

The Supermicro MBD-A2SDI-2C-HLN4F-O is a low-power Mini-ITX motherboard with an integrated 2-core Intel Atom C3338 processor. Part of the Denverton family, this board is designed for lightweight embedded applications, networking appliances, and entry-level cold storage that prioritise high efficiency and high SATA density over raw compute power.
Specifications
Model Number: MBD-A2SDI-2C-HLN4F-O
Brand: Supermicro
Alt Part Number(s): MBD-A2SDI-2C-HLN4F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SDI-2C-HLN4F-O
Processor Type: Intel Atom
Processor Model: C3338
Processor Speed: 1.5GHz(burst up to 2.2GHz)
Processor Core: 2Core/2 threads
ProcessorCache: 4MB
Storage Interfaces: Up to 8 × SATA3
Network: 4 × 1 GbE
USB: USB 3.0 Type-A port
Graphics: ASPEED AST2400 BMC
Memory Capacity: 32GB
Memory Supported: 128GB
Memory Type: DDR4
Memory Slots: 2 DIMM slots
Expansion Slots: 1 × PCIe 3.0 ×4
Error Detection: ECC
TDP: 9W
Power Input: 12V DC
Form Factor: Mini-ITX
*
