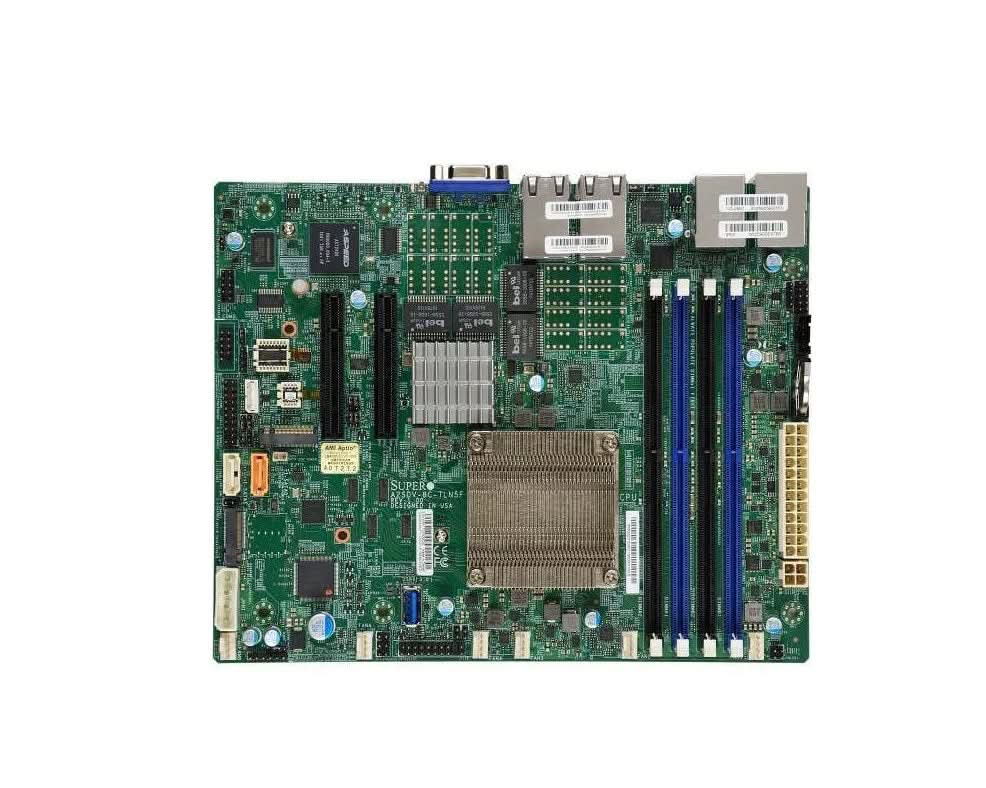

Supermicro MBD-A2SDI-16C-HLN4F-O Intel Atom Mini-ITX Server Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The MBD-A2SDI-16C-HLN4F-O is a 16-core Intel Atom® C3955-based Mini-ITX embedded/server motherboard with high memory capacity (up to 256 GB ECC), 12 SATA3 ports, quad 1 GbE LAN, PCIe and M.2 storage options, and robust IPMI remote management — ideal for compact storage servers, NAS appliances, edge servers, and industrial network applications requiring reliable performance and rich I/O in a small form factor.
Specifications
Model Number: MBD-A2SDI-16C-HLN4F-O
Brand: Supermicro
Alt Part Number(s): MBD-A2SDI-16C-HLN4F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: MBD-A2SDI-16C-HLN4F-O
Processor Type: Intel Atom
Processor Model: C3955
Processor Core: 16 cores / 16 threads
ProcessorCache: 16MB
Processor Socket: FCBGA-1310
Storage Interfaces: 12 × SATA3 (6 Gb/s),1 × M.2 M-Key
Network: 4 × Gigabit Ethernet (1 GbE) ports integrated via Intel C3000 SoC
USB: 1 x USB 3.0 Type-A port (internal), 4 x USB 2.0 ports
Video: 1 x VGA port
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4 DIMM slots
Expansion Slots: 1 × PCIe 3.0 ×4
Error Detection: ECC
TDP: 32W
Power Input: 12 V DC
Form Factor: Mini-ITX
*
