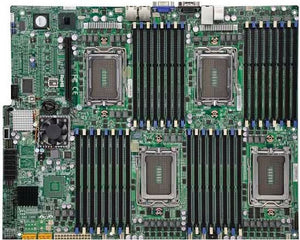

Supermicro H8QGi+-F SWTX Motherboard

The Supermicro H8QGi+-F is based on AMD's SR56x0/SP5100 chipset. This motherboard supports the new-generation AMD Opteron 6100 series processors (G34). This platform is built on a consistent architecture delivering continued performance-per-watt leadership and improved business capabilities by enhancing efficient Twelve/Eight-Core capabilities, low-power/high-bandwidth DDR3, AMD Virtualization support.

Form Factor:

SWTX Form, 16.48" x 13" (41.9cm x 33.0cm).

Processor:

Quad Sockets of G34, LGA 1944-pin.
Support HT3.0 link speed up to 6.4 GT/s
Support 16-Core AMD Opteron™ processor 6200 series (Interlagos)
Support 12-Core AMD Opteron™ processor 6100 series (Magny-Cours)

System Memory:

32x DDR3 240-pin DIMM sockets
Quad channel memory bus
Support up to 512GB of ECC Registered DDR3-1333/1066/800MHz memory, or
Support up to 128GB of Unbuffered ECC/non-ECC DDR3-1333/1066/800MHz memory
Memory should be populated equally in adjacent memory banks for quad CPU or dual CPU
Support 1.35V or 1.5V Memory Voltage

System Integrated with:

• Chipset:
  AMD SR5690 + SP5100 chipset
• SATA:
  AMD SP5100 SATA 3.0Gbps Controller
  Support six SATA2 3.0Gbps ports and RAID 0, 1, & 10.
• IPMI:
  Winbond® WPCM450 BMC
  Support for Intelligent Platform Management Interface v.2.0
  IPMI 2.0 with virtual media over LAN and KVM over LAN support
• Network Controller:
  Intel® 82576 Dual-Port Gigabit Ethernet LAN Controller
  Support 10BASE-T, 100BASE-TX, and 1000BASE-T with RJ-45 output.
  One RJ-45 port for IPMI Dedicated LAN
• Graphics:
  Matrox G200 graphics controller with 16MB DDR2 memory
• Super I/O:
  Winbond 83527 chip

Input/Output:

SATA: Six SATA2 3.0Gbps Ports
Networking: Two RJ-45 ports for GbE LAN, one RJ-45 port for IPMI Dedicated LAN.
USB: Total seven USB 2.0 ports (2x rear, 4x internal header, 1x Type A)
Graphics: One VGA port
Keyboard/Mouse: PS/2 keyboard and mouse ports
Serial Port: One Fast UART 16550 serial port, one serial header.

Expansion Slots:

One PCI-E 2.0 x16 slot

System BIOS:

16Mb SPI Flash ROM with AMI® BIOS
