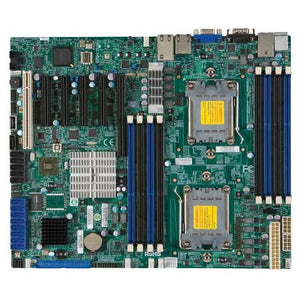

Supermicro H8dcl-6f-o Dual Socket C32/ AMD Sr5690/ Ddr3/ Sas2/ V&2gbe/ ATX Server Motherboard

Specifications

• Mfr Part Number: H8DCL-6F-O
• CPU: Dual Socket C32
  • Support two Eight-Core/Six-Core/Quad-Core AMD Opteron 4000 Series Processors
  • Support Hyper Transport 3.0 Link Technology
• Chipset: North Bridge AMD SR5690 & South Bridge AMD SP5100
• Memory: 8x DDR3-1600/1333/1066 DIMM Slots, Dual Channel, Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Non-ECC Unbuffered Memory
• Slots: 1x PCI-Express 2.0 x16 Slot (runs at x8), 4x PCI-Express 2.0 x8 Slots (one runs at x4), 1x PCI Slot
• SATA:6x SATA2 Ports, Support RAID 0, 1, 10
• SAS:8x SAS2 Ports, Support RAID 0, 1, 10
• Video: Matrox G200eW Graphics Controller w/ 16MB DDR2 Video Memory
• LAN: 2x Intel 82574L Singel-Port Gigabit Ethernet Controllers
• Ports: 7x USB 2.0 Ports (2 rear, 4 via headers, 1 type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor:ATX, 12.0 x 10.0 inch
• RoHS Compliant
