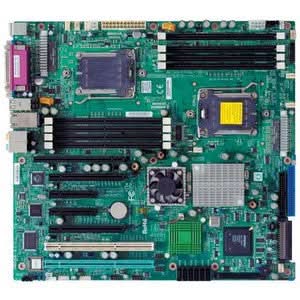

Supermicro H8DAE-2-B / H8DAE-2 NForCE Pro 3600 Dual Socket-F Audio LAN Extended-ATX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
H8DAE-2 Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.
- Chipset Manufacturer: NVIDIA
- Chipset Model: MCP55 Pro
- Total Processor Supported: 2
- Processor Technology: HyperTransport Technology
- Processor Socket: Socket F (1207)
- Processor Supported: Opteron Dual-Core
- Processor Supported: Opteron Quad-Core
- HyperTransport Speed: 1000 MHz
- 64-bit Processing: Yes
- Multi GPU Supported: SLI
Processor & Chipset
- Number of Memory Slots: 8
- Maximum Memory: 64 GB
- Memory Standard: DDR2-667/PC2-5300
- Memory Standard: DDR2-533/PC2-4200
- Memory Standard: DDR2-400/PC2-3200
- Memory Technology: DDR2 SDRAM
Memory
- Controller Type: Floppy Controller
- Controller Type: Serial ATA/300
- Controller Type: Ultra ATA/133 (ATA-7)
- RAID Supported: Yes
- RAID Levels: 0
- RAID Levels: 1
- RAID Levels: 5
- RAID Levels: 0+1
- RAID Levels: JBOD
I/O Controller
- Sound Controller Manufacturer: Realtek
- Sound Controller Model: ALC-883
- Audio Channels: 7.1
Audio
- Gigabit Ethernet: Yes
Network & Communication
- Number of Total Expansion Slots: 6
- Number of PCI-X Slots: 2
- Total Number of PCI Express Slots: 4
- Number of PCI Express x4 Slots: 1
- Number of PCI Express x8 Slots: 1
- Number of PCI Express x16 Slots: 2
I/O Expansions
- Total Number of USB Ports: 4
- Number of USB 2.0 Ports: 4
- Parallel Port: Yes
- Serial Port: Yes
- Audio Line In: Yes
- Audio Line Out: Yes
- Microphone Port: Yes
- Network (RJ-45): Yes
Interfaces/Ports
- Number of IDE Interfaces: 1
- Number of SATA Interfaces: 6
- Total Number of Onboard USB Ports: 2
- Total Number of Onboard FireWire/i.LINK Ports: 2
- Onboard LEDs Header: Yes
- Onboard Audio Header: Yes
Onboard Interfaces
- Form Factor: Extended ATX
- Width: 12.0"
- Depth: 13.1"
Physical Characteristics
-
Additional Information:
System BIOS:
- BIOS Type:
- 8Mb Flash EEPROM with AMI BIOS
- BIOS Features:
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 2.0
- BIOS Rescue Hot Keys
- SMBIOS 2.3
- USB Keyboard support
- Hardware BIOS Virus Protection
CD Utilities:
- BIOS flash upgrade utility
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
Miscellaneous
