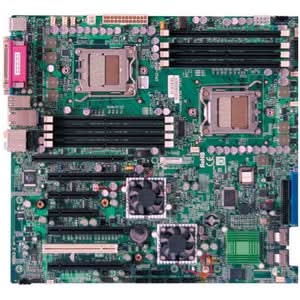

Supermicro H8DA3-2 / H8DA3-2-B NForCE Pro 3600 Dual Socket-F SATA(Raid) SAS(Raid) E-ATX Motherboard

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom
Supermicro H8DA3-2 / H8DA3-2-B NForCE Pro 3600 Dual Socket-F SATA(Raid) SAS(Raid) E-ATX Motherboard

Supermicro H8DA3-2 / H8DA3-2-B NForCE Pro 3600 Dual Socket-F SATA(Raid) SAS(Raid) E-ATX Motherboard

Price:
$409.00
SupermicroSKU: 51990
Model Number: H8DA3-2
Alt. Part Number: H8DA3-2-B
Condition: OEM Bulk
In stock:  Yes
Quote
No reviews

For Volume / Bulk Purchase Discounts Available

Shop with confidence! Saitech Inc is an authorized Supermicro Partner Reseller.

Learn more by visiting the manufacturer's website.

Manufacturer's Website

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

Description

H8DA3-2 Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

H8DA3-2 Product Overview

    Processor & Chipset

  • Chipset Manufacturer:     NVIDIA
  • Chipset Model:     MCP55 Pro
  • Total Processor Supported:     2
  • Processor Technology:     HyperTransport Technology
  • Processor Socket:     Socket F (1207)
  • Processor Supported:     Opteron
  • HyperTransport Speed:     1000 MHz

    Memory

  • Number of Memory Slots:     8
  • Maximum Memory:     32 GB
  • Memory Standard:     DDR2-400/PC2-3200
  • Memory Standard:     DDR2-667/PC2-5300
  • Memory Standard:     DDR2-533/PC2-4200
  • Memory Technology:     DDR2 SDRAM

    I/O Controller

  • Controller Type:     Serial Attached SCSI (SAS)
  • Controller Type:     Ultra ATA/133 (ATA-7)
  • Controller Type:     Serial ATA/300
  • Controller Type:     Floppy Controller

    Audio

  • Sound Controller Manufacturer:     Realtek
  • Sound Controller Model:     ALC883
  • Audio Channels:     7.1

    Network & Communication

  • Gigabit Ethernet:     Yes

    I/O Expansions

  • Number of Total Expansion Slots:     6
  • Number of PCI Slots:     1
  • Total Number of PCI Express Slots:     5
  • Number of PCI Express x4 Slots:     2
  • Number of PCI Express x8 Slots:     1
  • Number of PCI Express x16 Slots:     2

    Interfaces/Ports

  • Total Number of USB Ports:     4
  • Number of USB 2.0 Ports:     4
  • Parallel Port:     Yes
  • Serial Port:     Yes
  • Audio Line In:     Yes
  • Audio Line Out:     Yes
  • Microphone Port:     Yes
  • Network (RJ-45):     Yes

    Onboard Interfaces

  • Number of IDE Interfaces:     1
  • Number of SATA Interfaces:     6
  • Number of SAS Interfaces:     8
  • Total Number of Onboard USB Ports:     2
  • Onboard LEDs Header:     Yes

    Physical Characteristics

  • Width:     12.0"
  • Depth:     13.1"

    Miscellaneous

  • Additional Information:
  • ROHS Compliant
  • Dual Channel memory supported
  • LSI 1068E SAS Controller

    Chipsets:

  • Northbridge: nVidia MCP55 Pro
  • Southbridge: nVidia IO-55

    • BIOS Features:

  • 8Mb Flash EEPROM with AMI BIOS
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 2.0
  • USB Keyboard Support
  • SMBIOS 2.3

    Hardware Monitoring:

  • Monitors CPU Core Voltages, +3.3V, +5V, +12V, 5V Standby, VBAT
  • CPU 4-Phase-switching voltage regulator
  • Total up to 8-fan status tachometer monitoring
  • Up to eight 4-pin fan headers
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • PC temperature sensing logic
  • CPU / System Overheat LED
  • +5 Standby Alert LED
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • Chipkill Support
  • Onboard voltage monitors for two CPU cores, 3.3V, +5Vin, +12Vin, 5V standby and battery voltage
  • Fan status monitor with firmware/software on/off and speed control
  • Watch Dog
  • Environmental temperature monitoring via BIOS
  • Power-up mode control for recovery from AC power loss
  • System resource alert
  • Pulse Width Modulated (PWM) fan connectors
  • Auto-switching voltage regulator for the CPU core

    • ACPI Features:

  • Microsoft OnNow
  • LED for suspend state indication
  • BIOS support for USB keyboard
  • Main switch override mechanism
  • Internal/external modem ring-on
  • Suspend to RAM (STR)

    Support CD Contents:

  • BIOS flash upgrade utility

    • Supported Operating Systems:

  • MS Win XP Pro + SP2
  • MS Win 2003 Ent
  • MS Win Vista
  • MS Win XP Pro x64
  • MS Win 2003 Ent x64
  • MS Win Vista x64
  • RedHat Linux EL 3.0 (Update-7)
  • RedHat Linux EL 3.0 (Update-8)
  • RedHat Linux EL 4.0 (Update-3)
  • RedHat Linux EL 4.0 (Update-4)
  • RedHat Linux EL 3.0 (Update-7) x64
  • RedHat Linux EL 3.0 (Update-8) x64
  • RedHat Linux EL 4.0 (Update 3) x64
  • RedHat Linux EL 4.0 (Update 4) x64
