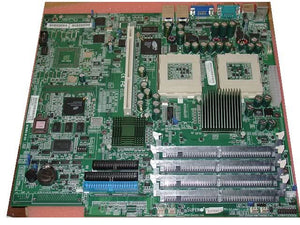

Supermicro Dual Socket 370 Motherboard - OEM w/o Parallel Port
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
P3TDEi Server Board is designed with the utmost attention to detail to provide the highest standards in quality and performance. This P3TDEi Desktop Board Supports intel Pentium III up to 1.4 GHz with 133MHz/100MHz FSB.
Processor & Chipset
- Chipset Manufacturer: Broadcom
- Chipset Model: ServerSet III HE-SL
- Total Processor Supported: 2
- Processor Socket: Socket PGA-370
- Processor Supported: Pentium III
- Front Side Bus: 133 MHz
- Front Side Bus: 100 MHz
Memory
- Number of Memory Slots: 4
- Maximum Memory: 4 GB
- Memory Standard: PC133
- Memory Standard: PC100
- Memory Technology: DDR SDRAM
I/O Controller
- Controller Type: Floppy Controller
- Controller Type: Ultra ATA/100 (ATA-6)
Video
- Onboard Video: On-board Video Chipset
- Graphics Controller Manufacturer: ATI
- Graphics Controller Model: Rage XL
- Graphics Controller Memory: 8 MB
Network & Communication
- Fast Ethernet: Yes
I/O Expansions
- Number of Total Expansion Slots: 1
- Number of PCI Slots: 1
Interfaces/Ports
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 2
- Parallel Port: Yes
- Serial Port: Yes
- VGA: Yes
- Network (RJ-45): Yes
- PS/2 Port: Yes
- Number of PS/2 Ports: 2
Onboard Interfaces
- Number of IDE Interfaces: 2
- Onboard LEDs Header: Yes
Physical Characteristics
- Form Factor: Full ATX
- Width: 12.1"
- Depth: 11.5"
Miscellaneous
-
Additional Information:
System BIOS:
- 4Mb Flash EEPROM with AMI BIOS
- Plug and Play (PnP)
- APM 1.2
- DMI 2.1
- PCI 2.2
- ACPI 1.0
- BIOS Rescue Hot Keys
- Hardware BIOS Virus Protection
- USB Keyboard Support
