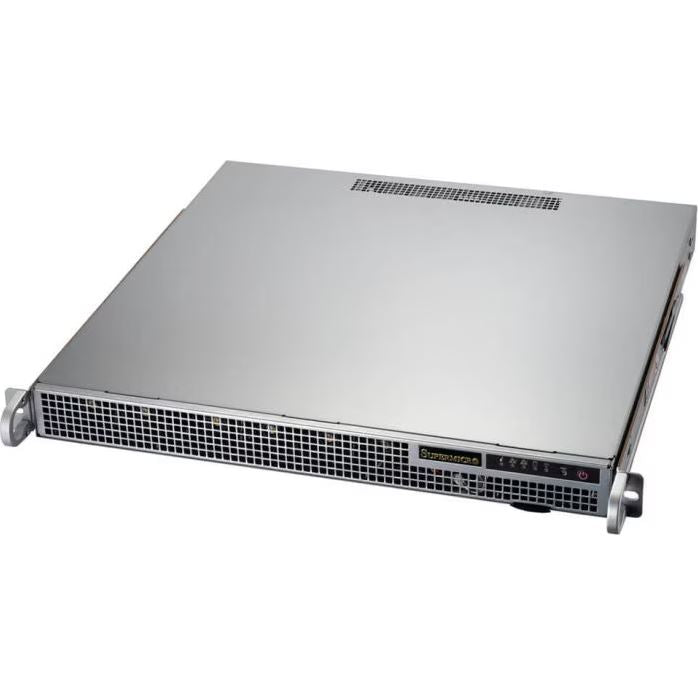

Supermicro AS-1015A-MT-01-G2 AMD EPYC 4004/4005, 192GB DDR5 ECC Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Supermicro AS -1015A-MT-01-G2 1U server with AMD EPYC 4004/4005 or Ryzen 7000/9000 Series single-socket processors, up to 16 cores/32 threads, 192GB DDR5-5200 ECC/non-ECC UDIMM, one single-width GPU, dual 1GbE, SATA and NVMe RAID 0/1, and two PCIe 5.0 x4 M.2 NVMe slots. It features the CSE-514-505 chassis, one fixed 3.5-inch SATA bay, AMD B650 chipset, 500W 80 PLUS Platinum power supply, and support for NVIDIA A2, L4, RTX 4000 Ada, RTX A4000 or AMD Radeon Pro W7500 GPUs.
Specifications
Model Number: AS -1015A-MT-01-G2
Brand: Supermicro
Alt Part Number(s): AS -1015A-MT-01-G2
Product Type: Server
Technical Description
Brand: Supermicro
Model Number: AS -1015A-MT-01-G2
Processor: AMD EPYC™ 4004 / 4005; AMD Ryzen™ 7000 / 9000 Series Processors
CPU: Single processor(s)
Core Count: Up to 16C/32T
CPU TDP: 60W - 170W; Air Cooled
Max GPU Count: Up to 1 single-width GPU
Supported GPU: NVIDIA PCIe: A2, L4, RTX 4000 Ada Generation, RTX A4000; AMD PCIe: Radeon Pro W7500
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect
Memory: Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Slot Count: 4 DIMM slots
Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM
Memory Voltage: 1.1V
SATA: SATA (6Gbps); RAID 0/1 support
NVMe: NVMe; RAID 0/1 support (Native)
Chipset: AMD B650
Network Connectivity: 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI); 2 RJ45 1GbE with Intel® I210-AT
LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB: 3 Type-A ports (Rear); 2 Type-C ports (Rear); 1 Type-C port (Rear)
Video: 1 VGA port; 1 DisplayPort 1.4 port; 1 HDMI 2 port
Audio: Rear Audio
TPM: 1 TPM header
BIOS Type: AMI 32MB SPI Flash
Software: SuperCloud Composer®; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
Power Management: ACPI 6.0 Power Management
FAN: Status monitor for speed control
Other Features: 8-pin 12v DC power connector; ACPI power management; ATX Power connector; Chassis intrusion header; Control of power-on for recovery from AC power loss; CPU thermal trip support for processor
Temperature: CPU thermal trip support; Monitoring for CPU and chassis environment; PECI
Voltage: +1.0V PCH; +1.8V PCH; +12V; +3.3V; +5V; +5V standby; 1.05V (PCH); 3.3V standby; 5V (4-pin); CPU; CPU temperature; CPU thermal trip support; PCH temperature; System temperature; VBAT; VRM
Form Factor: 1U
Model: CSE-514-505
Height: 1.7" (43 mm)
Width: 17.2" (437 mm)
Depth: 16.9" (429 mm)
Package: 8" (H) x 27" (W) x 24" (D)
Weight: Gross Weight: 16 lbs (7.26 kg)
Available Color: Silver
Buttons: Power On/Off button; System Reset button
LED: Fan Fail/System Over Heat LED; HDD activity LED; Network Activity LEDs; Power status LED
Drive Bays Configuration: Total 1 bay; 1 internal fixed 3.5" SATA drive bay
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
Fans: Up to 6x 40mm Fan(s)
Air Shroud: 1 Air Shroud
Power Supply: 1x 500W
Description: 1x 500W Platinum Level (93%) power supply
Dimension (WxHxL): 100 x 40 x 180 mm
Input: 500W: 100-240Vac; 500W: 100-240Vac / 50-60Hz
+12V: Max: 41A / Min: 0.5A; Max: 41A / Min: 0.5A (100Vac-240Vac)
5V SB: Max: 3A / Min: 0A
Output Type: 24pin ATX
Certification: 80 Certified Platinum Level
ROHS: RoHS Compliant
Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
