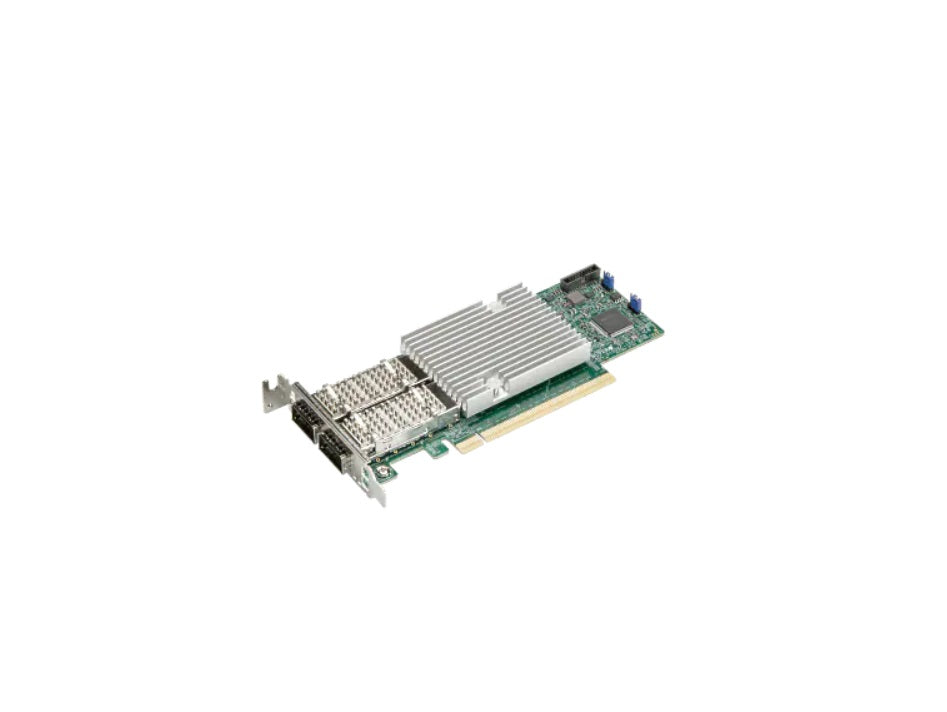

Supermicro AOC-S100GC-I2C-O Intel E810-CAM2 Dual QSFP28 Network Interface Card
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Supermicro AOC-S100GC-I2C-O is a compact low-profile network interface card featuring an Intel E810-CAM2 Ethernet Controller, PCIe 4.0 16GT/s with PCIe 3.0 backward compatibility, dual QSFP28 connectors, and support for up to four 25Gb or eight 10Gb connections. It supports advanced networking, virtualization, RDMA, data center bridging, QoS, iSCSI and PXE boot, SR-IOV, DPDK, and comprehensive offload features, with storage temperatures from -40°C to 70°C and RoHS 6/6 compliance.
Specifications
Model Number: AOC-S100GC-I2C-O
Brand: Supermicro
Alt Part Number(s):AOC-S100GC-I2C-O
Product Type: Network Interface Card
Technical Description
Brand: Supermicro
Model: AOC-S100GC-I2C-O
Controller: Intel E810-CAM2 Ethernet Controller
Form Factor: Compact size low-profile standard form factor
Bus Interface: PCI-E 4.0; 16GT/s
Backward Compatibility: PCIe v3.0
Connectors: Dual QSFP28
Interrupts: Message Signal Interrupt (MSI-X)
Networking: Jumbo Packet (9K Max); Teaming; Virtual LANs 802.1q VLAN tagging; up to four 25Gb connections or eight 10Gb connections
Checksum Offload: TCP; UDP; IPv4; IPv6
Offload Features: Large Send Offload; Receive Segment Coalescing; TCP Segmentation Offload; Large Receive Offload; Receive Side Scaling (RSS)
Virtualization: VXLAN; NVGRE; Geneve; SR-IOV; 768 Virtual Station Interfaces (VSI); 8 Physical Functions (PF); Microsoft VM Queue; VMware NetQueue; DPDK Support
QoS: Priority-based Flow Control (802.1Qbb); Enhanced Transmission Selection (802.1Qaz)
RDMA: iWARP; RoCEv2
Data Center Bridging: Enhanced Transmission (IEEE 802.1Qaz); Priority-based Flow Control (IEEE 802.1Qbb); Edge Virtual Bridging (IEEE 802.1Qbg)
Manageability: Network Controller Sideband Interface (NC-SI); Asset Management with Thermal Sensors
Remote Boot: iSCSI Boot; Legacy PXE Boot; UEFI PXE Boot
Power Management: ACPI Compliant power management; Pass-through Energy Efficient Ethernet (IEEE 802.3az-2010)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Storage Humidity: 90% non-condensing relative humidity at 35°C
Compliance: RoHS Compliant 6/6
