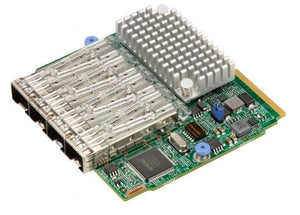

Supermicro AOC-MTG-i4S 4-port 10GbE SFP+ Network Adapter

Overview

Supermicro® Super I/O Modules provide flexible I/O networking options and the AOC-MTG-i4S is the most advanced, marketleading 4-port 10GbE SFP+ SIOM controller. It expands virtualization beyond the server level to the network level, and combines with hardware optimizations and offloads. It provides unmatched features for virtualization, flexibility for LAN and SAN networks, and reliable performance.



Specifications

Mfr Part Number:  AOC-MTG-i4S

Brand:  Supermicro

Model Number:  AOC-MTG-i4S

Type:  Network Adapter



Technical Description

Brand:  Supermicro

Model:  AOC-MTG-i4S

Data Link Protocol:  10 Gigabit Ethernet

Data Transfer Rate:  10 Gbps

Processor:  1 x XL710-AM1 - Intel

Remote Management Protocol:  RMON, SNMP

Port Quantity:  Quad SFP+ connectors with speed up to 10Gbps per port

Network / Transport Protocol:  SCTP, TCP/IP, UDP/IP, iSCSI

Compliant Standards:  IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad

Operating temperature:  0°C to 55°C (32°F to 131°F)

Storage temperature:  -40°C to 70°C (-40°F to 158°F)

Power Consumption:  7 Watt

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Depth:  3.6 in

Height:  3.4 in



Features

Quad SFP+ Connectors

Super I/O Module (SIOM) Form Factor

Network Virtualization Offloads including VXLAN and NVGRE

Small Packet Performance

Data Plane Developer Kit for efficient packet processing

Low Power Consumption

Intel® Flow Director

Intelligent Offloads

Unified networking providing a single wire support for LAN and storage

Asset Management Features

NC-SI for Remote Management

RoHS compliant 6/6

Supports Both Direct Attach Copper and Fiber Cables
