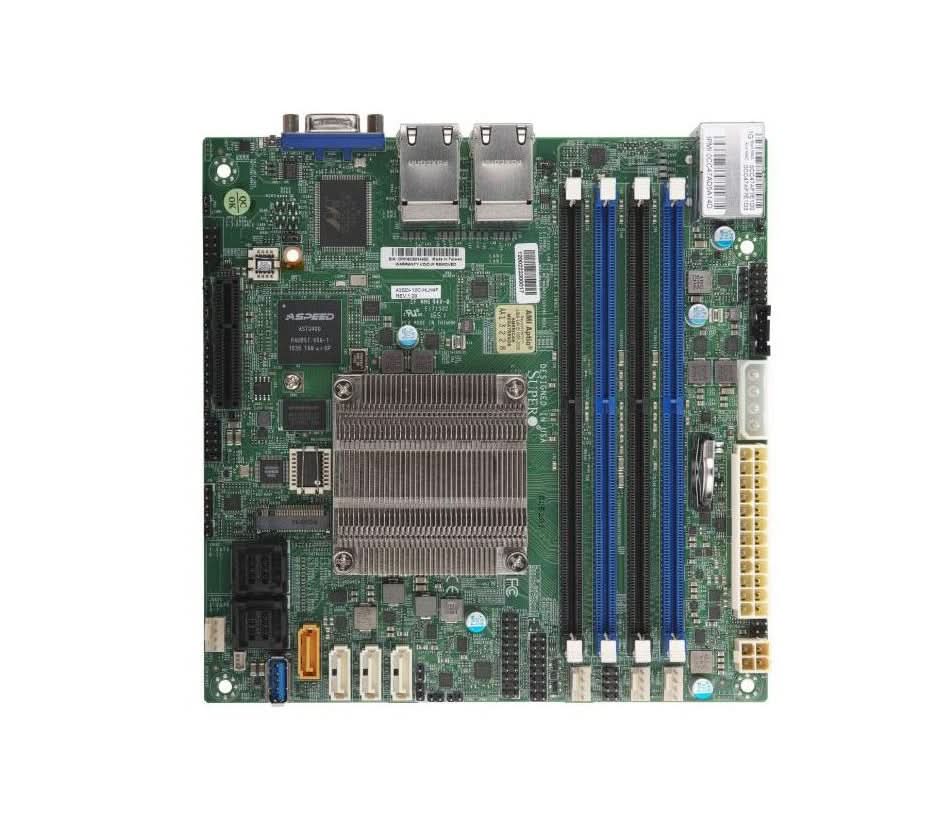

Supermicro A2SDI-16C-HLN4F-B Intel Atom 16-Cores DDR4 Mini-ITX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro A2SDI‑16C‑HLN4F‑B is a Mini‑ITX server motherboard with a high‑core count Intel Atom® C3955 SoC designed for compact & efficient server, storage, and network appliances. It uses a System‑on‑Chip (SoC) architecture, integrating CPU, memory controller, networking, and I/O for low‑power, dense systems.
Specifications
Model Number: A2SDI-16C-HLN4F-B
Brand: Supermicro
Alt Part Number(s): A2SDI-16C-HLN4F-B
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: A2SDI-16C-HLN4F-B
Processor Type:Intel Atom
Processor Model: C3955
Processor Cache: 16MB
Processor Core: 16-Cores/16 Threads
Processor Socket: FCBGA‑1310
Storage Interfaces: 12 SATA3 (6Gbps) ports
Ethernet: Quad-port Gigabit Ethernet (1GbE) via the Intel C3000 SoC
Rear I/O: 1 VGA port, 2 USB 2.0 ports, and 4 RJ45 LAN ports
Internal Headers: 1 USB 3.0 (Type-A), 1 COM port, and a TPM header.
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4
Expansion Slots: 1 PCIe 3.0 x4 slot
Error Detection: ECC
Input Power: 12 V DC
Power Capacity: 32W
Form Factor: Mini-ITX
*
