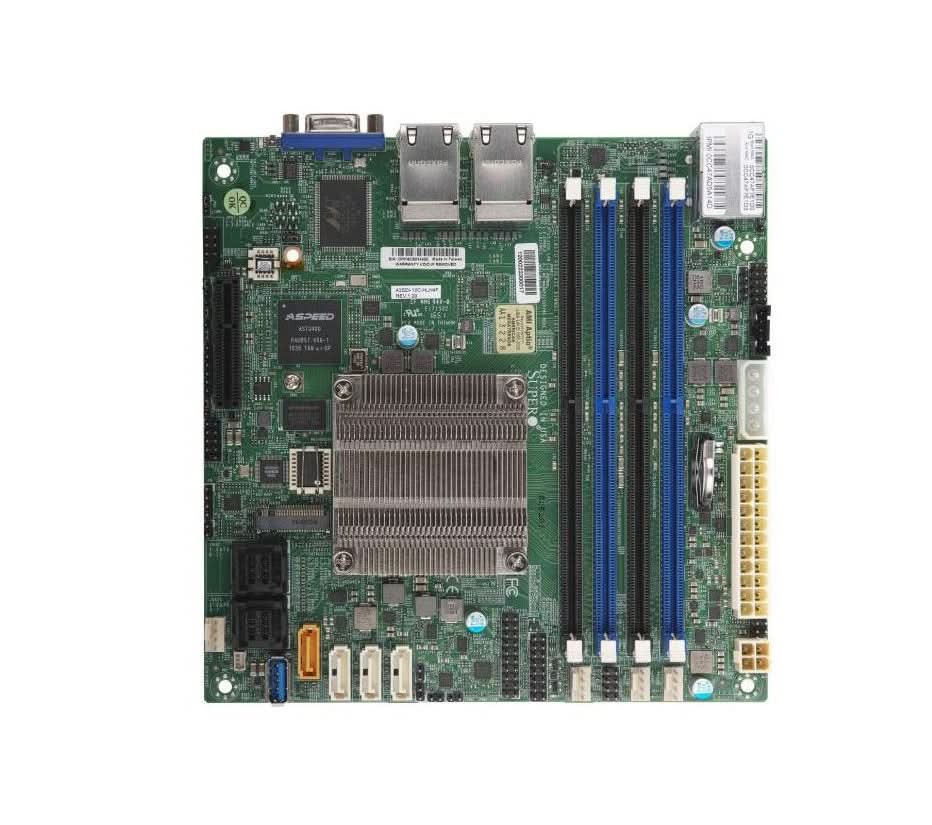

Supermicro A2SDI-12C-HLN4F-O Intel Atom 2GHz 12-Cores Mini-ITX Motherboard
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We’re happy to source this item specifically for you! While it may take a bit more time to arrive, we’ll keep you informed every step of the way. Shipping timelines can vary based on the manufacturer's fulfillment schedule.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. partners with top-tier manufacturers and authorized distributors to fulfill special order requests — including hard-to-find, end-of-life, and build-to-order products. Our team ensures every special order is handled with precision, transparency, and dedicated support from start to finish.
- Overview
Overview
The Supermicro A2SDI‑12C‑HLN4F‑O is a compact, power‑efficient server motherboard built around the Intel Atom C3858 SoC. It’s ideal for network appliances, storage servers, edge compute nodes, and embedded systems that need many SATA ports, multiple LAN ports, and solid remote management in a small Mini‑ITX footprint.
Specifications
Model Number: A2SDI-12C-HLN4F-O
Brand: Supermicro
Alt Part Number(s): A2SDI-12C-HLN4F-O
Product Type: Motherboard
Technical Description
Brand: Supermicro
Model Number: A2SDI-12C-HLN4F-O
Processor Type: Intel Atom
Processor Model: C3858
Processor Cache:12 MB L3
Processor Clock Speed: 2GHz
Processor Core: 12-Cores/12 Threads
Processor Socket: FCBGA‑1310
Storage: 12 × SATA3, 1 × M.2 (PCIe 3.0×2 + SATA)
Network: 4 × 1 GbE LAN, IPMI LAN
Graphics: ASPEED AST2400 BMC
Memory Capacity: 64GB
Memory Supported: 256GB
Memory Type: DDR4
Memory Slots: 4
Expansion Slots: 1 × PCIe 3.0 ×4
Error Detection: ECC
Input Power: 12 V DC
Power Capacity: 25W
Form Factor: Mini-ITX
*
