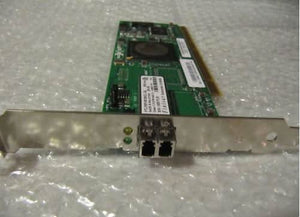

Sun SG-XPCI1FC-QL2 2GB PCI-X Single Fiber Channel Host Bus Adapter

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom
Sun SG-XPCI1FC-QL2 2GB PCI-X Single Fiber Channel Host Bus Adapter

Sun SG-XPCI1FC-QL2 2GB PCI-X Single Fiber Channel Host Bus Adapter

Price:
$139.00
Get a quote
SunSKU: 597101
Model Number: SG-XPCI1FC-QL2
Condition: Refurbished
In stock:  Yes
No reviews
SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

Description

This Fibre Channel to PCI-X Host Bus Adapter has been optimized for peak performance and real-world scalability in storage area networks (SANs). Engineered for maximum bandwidth, this HBA eliminates host bus bottlenecks that may impede the high-performance of 2 Gb Fibre Channel and creates a balanced solution and is optimized for high-speed data movement and system management, providing the flexibility needed to run complex storage networks.
SG-XPCI1FC-QL2 Product Overview

    Technical Information

  • Ports/Channels:     1 x
  • Host Interface:     PCI-X
  • Backward Compatibility:     PCI 33 MHz
  • Backward Compatibility:     PCI 66 MHz
  • Fabric Supported:     F_Port
  • Topology:     Point-to-Point
  • Topology:     Switched Fabric
  • Fibre Channel Class Supported:     Class 3

    Media & Performance

  • Data Transfer Rate:     2.12 Gbps

    Management & Protocols

  • Protocols:     SCSI
  • Protocols:     FC-Tape
  • Protocols:     FC-AL

    Memory

  • Standard Memory:     256 KB RAM Per Port

    Power Description

  • Power Consumption:     6 W

    Environmental Conditions

  • Temperature:
  • Temperature:
  • Humidity:     5% to 90% Non-condensing Relative Humidity Operating
  • Humidity:     0% to 95% Non-condensing Relative Humidity Non-operating

    Physical Characteristics

  • Form Factor:     Plug-in Card
  • Height:     4.2"
  • Height:     2.5"
  • Width:     6.6"
  • Width:     6.9"

    Miscellaneous

  • Additional Information:
  • Integrated enhanced RISC processor
  • Integrated PCI DMA controller
  • Automatically negotiates Fibre Channel bit rate
  • Compatibility:
  • Sun StorEdge Traffic Manager software

    • Operating Systems:

  • Unix
  • Sun Solaris 8
  • RedHat RHEL
  • SUSE SLES8
  • Windows Server 2000 WHQL
  • Windows Server 2003 WHQL

    • Server Platforms:

  • SunBlade
  • Sun Fire
