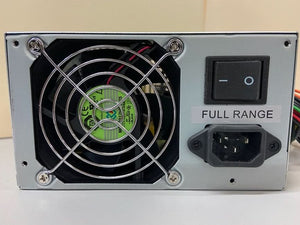

Sparkle Power FSP300-60PLN 300W 90-264VAC PFC ATX 12v Power Supply
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Mfr Part Number: FSP300-60PLN
Brand: Sparkle Power
Alt Part Number: FSP300-60PLN
Type: Power Supply
Technical Description
Brand: Sparkle Power
Model: FSP300-60PLN
Power Provided: 300 Watt
Input Range: 90 ~ 264Vac (RMS), Full Range Input
Frequency: 47 ~ 63Hz
Input Current: Max 6A (RMS) @ 115Vac, 3A (RMS) @ 230Vac
Operating: 0°C ~ +50°C on full load;
storage & shipping: -20°C ~ +80°C
Humidity: 95% on operating & storage
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
MTBF: 100,000 hour(s)
Features
Complied with ATX and ATX12V standard
Active Power Factor Correction (PFC) meet EN61000-3-2
High efficiency and reliability Compatible with European Union Directive 2002/95/EC (Restriction on Hazardous Substances).
Remote ON/OFF function
Internal 12V DC fan included
Noise Killer (thermal fan speed control function)
Low noise and ripple
Output over voltage, short circuit, and over current protection
100% Hi-pot, ATE, and burn-in tested
Re-settable power shutdown
Complies with FCC part 15 subpart J class B, and CISPR 22 class B
Approved by CUL/UL60950-1,TUV EN60950-1, NEMKO EN60950-1 (CB Report), CE ,CCC,FCC,EMC
Connectors: 8 pins connectors and 18 pins connectors
*
