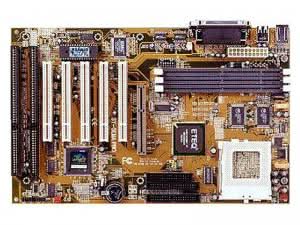

Soyo SY-5EMAPRO Intel Pentium Chipset-ETEQ 82C6638/6629 Socket-7 768Mb SDRAM ATX Motherboard

Specifications

Model Number:  SY-5EMAPRO

Brand:  Soyo

Alt Part Number(s):  SY-5EMAPRO

Product Type:  Motherboard

Note:  New Motherboard Only (Accssories Not Included) No I/O Shield



Technical Description

Brand:  Soyo

Model:  SY-5EMAPRO

Form Factor:  ATX

Processor Socket:  Socket 7

Compatible Processors:  Pentium MMX, K6-2, Pentium, K6 MMX

Data Bus Speed:  100 MHz

Chipset Type:  ETEQ 82C6638/6629

Supported RAM Technology:  SDRAM, EDO RAM

BIOS Type:  Award

BIOS Features:  ACPI support, DMI support

Sleep / Wake Up:  Wake on LAN (WOL), RTC (real-time clock) wake up

Manual Settings:  Processor core voltage, CPU frequency

Storage:  ATA-66

Connector(s):  2 x 40pin IDC

Supported Devices:  DVD drive, CD drive, Removable media drive, Tape drive, Hard drive

RAID Level:  None

Processor Max Supported Qty:  1

CPU Installed Qty:  0

Cache Memory Installed Size:  512 KB

Memory Type:  L2 cache

Max Supported RAM Size:  768 MB

Depth:  7.5 in

Width:  12 in
