Description
Overview

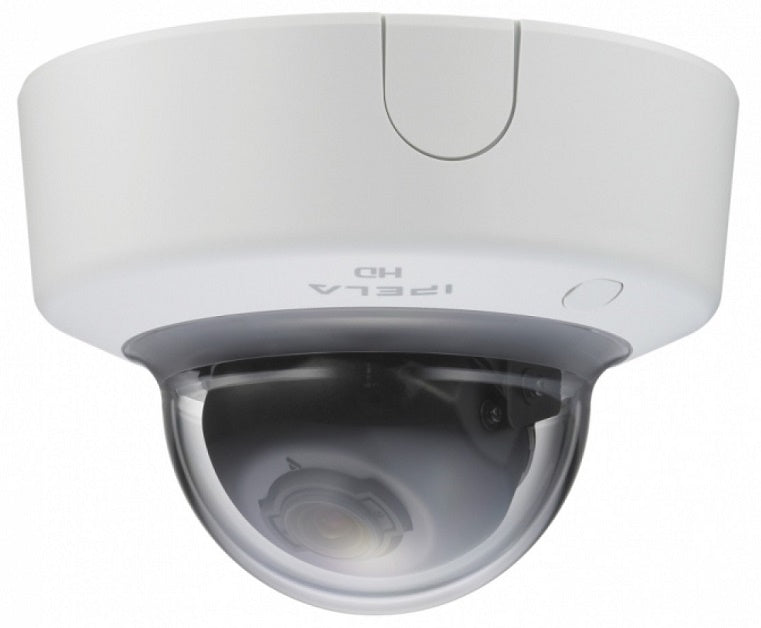

Sony SNC-EM601 1.37-Megapixel 3-9mm Varifocal H.264 Indoor Vandal Minidome Network Surveillance Camera
Specifications
Model Number: SNC-EM601
Brand: Sony
Alt Part Number(s): SNC-EM601
Type: Network Surveillance Camera
Technical Description
Brand: Sony
Model: SNC-EM601
IP/Analog: IP
Camera Type: HD
Type: Indoor Vandal Minidome
Camera: SNCEM601
Image Device: 1/3 type progressive scan Exmor CMOS
Effective Pixels: Approx. 1.37 Megapixels
Minimum Illumination: Color - 0.05 lx (F1.0, View-DR OFF, VE OFF, AGC ON, 1/30 s, 30 fps, B/W: 0.04 lx (F1.0, View-DR OFF,VE OFF, AGC ON, 1/30 s, 30 fps)
Lens Type: Built-in varifocal lens
Focal Length: f = 3.0 mm to 9.0 mm
F-Number: F1.2 (Wide) to F2.1 (Tele)
Compression Format: H.264 (High/Main/Baseline Profile), JPEG
Day Night: Yes (True D/N)
Wide-D: Yes
Zoom Ratio: Optical zoom 3x, Digital zoom 4x, Total zoom 12x
Minimum Object Distance: 300 mm
White Balance Mode: ATW, ATW-PRO, Fluor.,Merc., Sodium vapor,Metal halide lamp, White LED, One push WB, Manual
Horizontal Viewing Angle: 93.0 to 31.6 Degree
Exposure Control: Exposure compensation,AGC, Shutter speed, Iris
Gain: Auto
Image Size: 1280 x 1024, 1280 x 960,1024 x 768, 1280 x 720,800 x 600, 720 x 576,720 x 480, 704 x 576,640 x 480, 352 x 288,320 x 240
Compression Format: H.264 (High/Main/Baseline Profile), JPEG
Frame Rate: 30 fps
S/N Ratio: More than 50 dB (Gain 0 dB)
Network: 10BASE-T / 100BASE-TX (RJ-45)
Dimensions (W x H x D): 148 mm x 108 mm
Power Requirements: PoE system (IEEE 802.3af compliant Class 2)
Power Consumption: 5.0 W max.
Operating Temperature: -10 °C to +50 °C
Storage Temperature: -20 °C to +60 °C
Storage Humidity: 20% to 95%
Compression: H.264 or JPEG
FPS: variable up to 30
Resolution: 1.3 megapixel/720p
Watts: 5.0 W max.
Protocols: IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, DNS, NTP, RTP/RTCP,RTSPoverTCP, RTSPoverHTTP, SMTP, IPv6, HTTPS, SNMP (v1,2c,3), SSL
Number of Clients: 20
Authentication: IEEE 802.1X
Processor: Intel Corei7 2.8 GHz or higher
Memory: 2 GB or more
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
