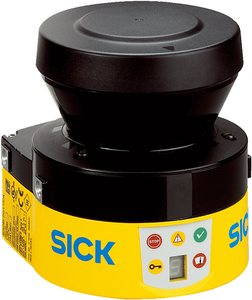

SICK S32B-3011BA S300 Mini Standard Long Range Safety Laser Scanner
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Specifications
Model Number: S32B-3011BA
Brand: SICK
Alt Part Number(s): S32B-3011BA
Product Type: Safety Laser Scanner
Technical Description
Brand: SICK
Model: S32B-3011BA
Protective field range: 3 m
Warning field range: 8 m (at 15 % reflectivity)
Distance measuring range: 30 m
Number of field sets: 1
Number of fields: 3
Number of monitoring cases: 1
Scanning angle: 270°
Angular resolution: 0.5°
Response time: 80 ms 1)
Protectivefield supplement: 100 mm
Number of multiple samplings: 2 ... 16, configurable
Delay of automatic reset: 2 s ... 60 s, configurable
Supply voltage: 24 V DC (16.8 V DC ... 30 V DC)
Power consumption: ≤ 0.25 A 1) , ≤ 1.35 A 2)
Ambient operating temperature: –10 °C ... +50 °C
Storage temperature: –25 °C ... +50 °C
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Dimensions (W x H x D): 102 mm x 116 mm x 105 mm
*
