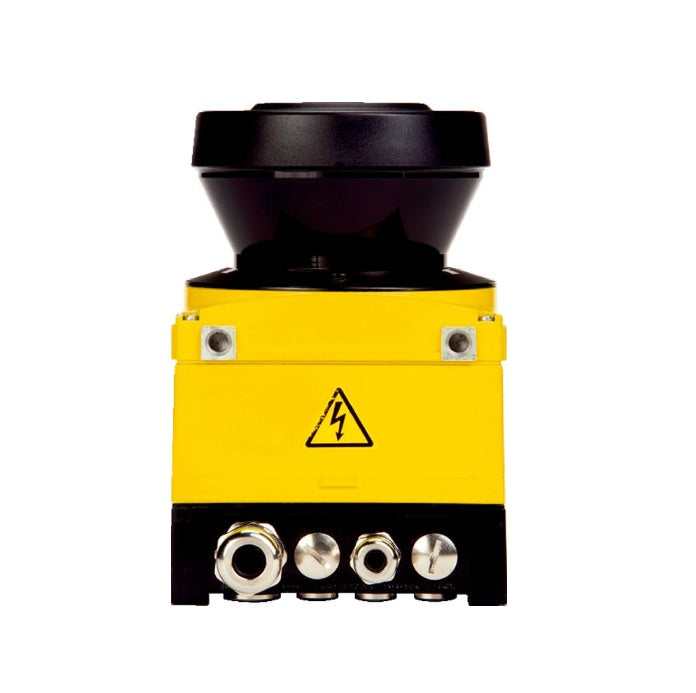

The S30B-2011DA (Part No. 1026822) is a SICK S300 Professional safety laser scanner designed for industrial indoor applications, such as protecting hazardous areas or automated guided vehicles (AGVs).
Specifications
Model Number: S30B-2011DA
Brand: Sick
Alt Part Number(s): S30B-2011DA
Product Type: Safety Laser Scanner
Technical Description
Brand: Sick
Model Number: S30B-2011DA
Scanning Angle: 270°
Protective Field Range: 2meters
Warning Field Range: 8meters
Distance Measuring Range: Up to 30meters
Response Time: 80ms
Monitoring Cases: Up to 32 programmable cases
Field Sets: 8 switchable triple field sets (24 fields total)
Safety Level: Type 3 (IEC 61496), SIL2 (IEC 61508), and PL d (EN ISO 13849)
Supply Voltage: 24 V DC
Power Consumption: 0.33 A
Interfaces: RS-232 (configuration), RS-422 (data output), and EFI for safe SICK
Outputs: 2 safety outputs (OSSD)
Enclosure Rating: IP 65
*
