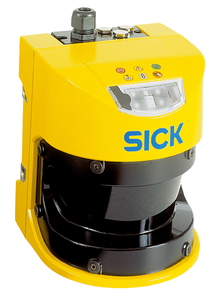

Sick S30A-6011EA S3000 5.5M Protective Field Remote Safety Laser Scanner

Specifications

Model Number:  S30A-6011EA

Brand:  Sick

Alt Part Number(s):  S30A-6011EA

Product Type:  Laser Sensor



Technical Description

Brand:  Sick

Model:  S30A-6011EA

Number of field sets:  32 2) 3)

Number of fields:  64

Scanning angle:  190°

Response time:  60 ms 4)

Protective field range:  5.5 m

Distance measuring range:  49 m

Warning field range:  49 m (20 m at 20 % reflectivity)

Number of simultaneously monitored protective fields:  ≤ 4 1)

Resolution (can be configured):  30 mm, 40 mm, 50 mm, 70 mm, 150 mm

Angular resolution:  0.5°, 0.25°, depending on range and resolution

Protective field supplement:  100 mm

Number of multiple samplings:  2 ... 16, configurable

Delay of automatic reset:  2 s ... 60 s, configurable

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet



*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
