- Overview

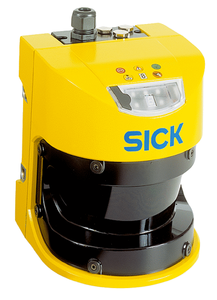

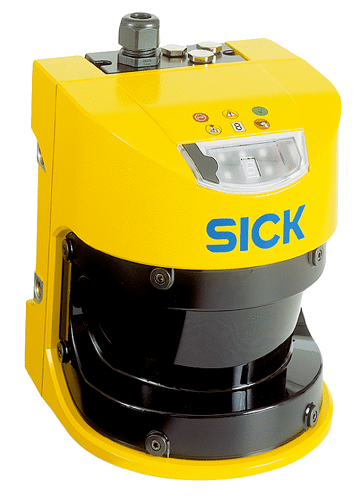

The Sick S30A-6011CA is a high-performance safety laser scanner from the S3000 Advanced series, engineered for complex industrial safety applications, including large stationary areas and high-speed Automated Guided Vehicles (AGVs)
Specifications
Model Number: S30A-6011CA
Brand: Sick
Alt Part Number(s): S30A-6011CA
Product Type: Laser Sensor
Technical Description
Brand: Sick
Model Number: S30A-6011CA
Series: S3000
Detectable Resolution: Configurable at 30, 40, 50, 70, or 150mm
Monitoring Capability: 4 Field Sets and 12 Fields
Protection Range: Up to 5.5m ~ 49m
Response Time: 60ms
Scanning Angle: 190°
Interface: Features an EFI interface
Measured Data Output: RS-422
Safety Level: PL d (EN ISO 13849), SIL2 (IEC 61508), and Type 3 (IEC 61496)
Supply Voltage: DC 24V
Power Consumption: Typical 0.8A
