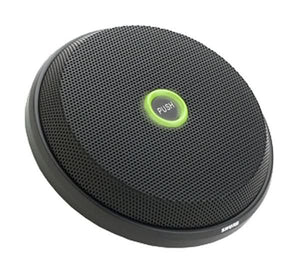

Shure MX396/C-TRI MicroFlex Tri-Element Boundary Microphone

Overview

The MX396/C Boundary Microphone from Shure is capable of 180 or 360 degrees of coverage for excellent speech pick up between two people or groups seated within the range. The MX396/C is designed for capturing speeches in conference settings, education, telecommunication and more. The capsules feature cardioid polar patterns for maximum surface reflection and off-axis noise rejection. The mounting hardware allows for the attached (unterminated) cable to be side or bottom mounted. Also features are a Mute switch and Logic connections.



Specifications

Model Number:  MX396/C-TRI

Brand:  Shure

Alt Part Number(s):  MX396/C-TRI

Product Type:  Boundary Microphone



Technical Description

Brand:  Shure

Model:  MX396/C-TRI

Transducer:  Electret Condenser

Polar Pattern:  Cardioid

Frequency Range:  50 Hz to 17 kHz

Signal to Noise Ratio:  66 dB

Equivalent Noise Level:  28 dB A-Weighted

Maximum SPL:  122 dB SPL

THD:  1%

Impedance:  170 Ohms

Sensitivity:  18 mV/Pa

Dynamic Range:  94 dB

Output Connectors:  Not Specified by Manufacturer

Cable Length:  20'; / 6.1 m

Operating Current Consumption:  12 mA

Operating Voltage:  48 V ± 4 V

Operating Temperature:  0 to 135°F / -17.78 to 57.22°C

Operating Humidity:  0 to 95%

Storage Temperature:  -20 to 165°F / -28 to 73.89°C

Diameter:  4.33" / 110 mm



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
