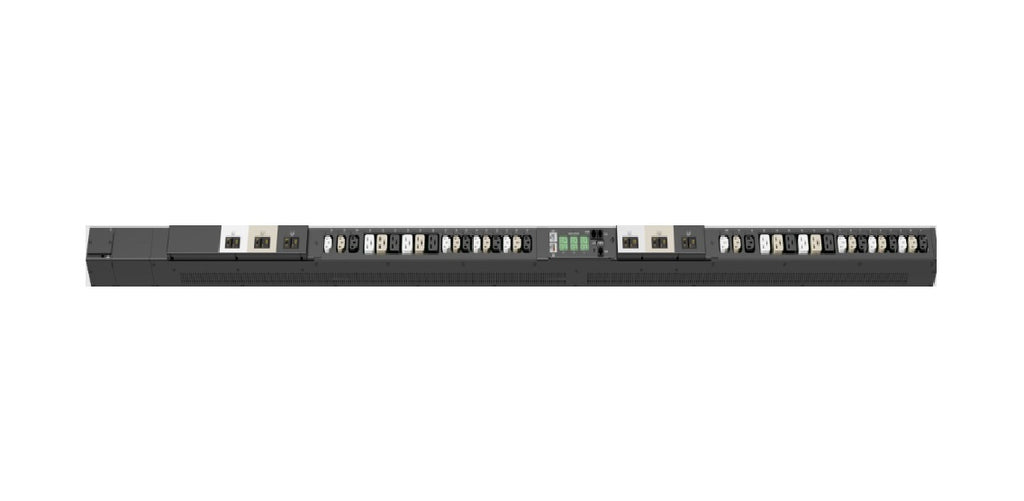

Server Technology PRO2 Switched C2X36TE-5PAE2M99/Z1 36-Outlets PDU
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Server Technology PRO2 C2X36TE-5PAE2M99/Z1 is an enterprise-grade, Switched Expansion (Link) Power Distribution Unit (PDU) optimized for high-density, high-voltage server racks. It serves as a secondary or redundant power strip that daisy-chains directly into a primary "Master" PDU, enabling data centers to double their outlet count using only a single network IP address.
Specifications
Model Number: C2X36TE-5PAE2M99/Z1
Brand: Server Technology
Alt Part Number(s): C2X36TE-5PAE2M99/Z1
Product Type: Power Distribution Unit
Technical Description
Brand: Server Technology
Model: C2X36TE-5PAE2M99/Z1
Product Series: PRO2 Switched Expansion
Phase: 3-phase
Input connectors: IEC 60309, 3P+N+PE
Output Connectors: 18 × IEC 60320 C13 + 18 × CX/HDOT
Total power capacity: 17.2kW
Input Current: 30A
Total Number of Outlets: 36-Outlets
Cord Length: 10ft
Frequency: 50/60 Hz
Input Voltage: 415 V AC
Rack Height: 0U
Output Voltage: 240 V AC
Form Factor: 0U Rackmount
Height: 7.00"
Width: 9.00"
