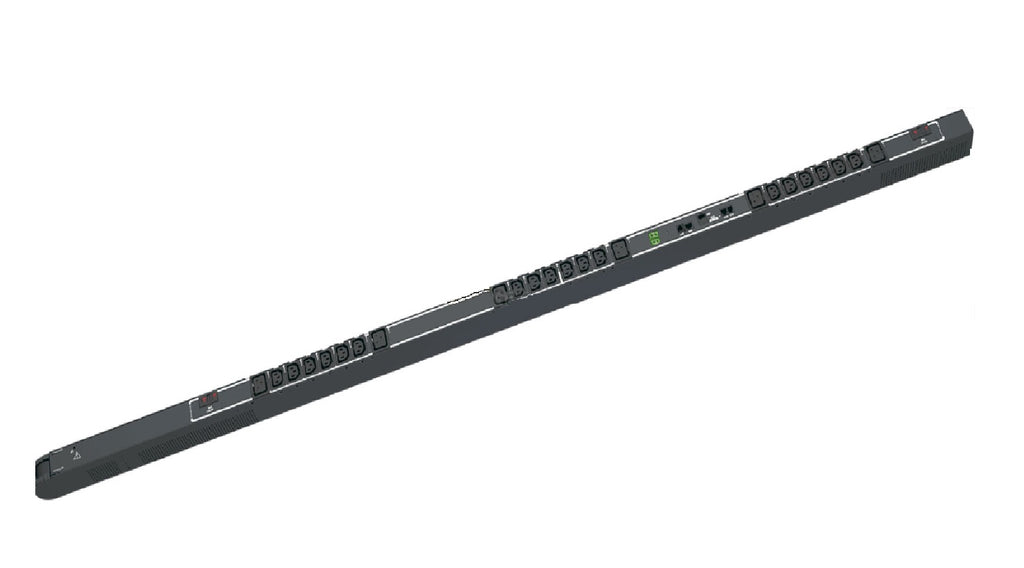

Server Technology PRO1 Switched STV-4540B 3.3kW 20A Power Distribution Unit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Server Technology STV-4540B is an enterprise-grade, PRO1 Switched Rack Power Distribution Unit (PDU) designed for 208V single-phase North American data center architectures. Occupying a zero-U (0U) vertical profile, it combines remote network outlet power cycling with precision input monitoring. This specific model features a uniform outlet layout, omitting larger C19 receptacles entirely to maximize infrastructure density for standard dual-corded servers.
Specifications
Model Number: STV-4540B
Brand: Server Technology
Alt Part Number(s): STV-4540B
Product Type: Power Distribution Unit
Technical Description
Brand: Server Technology
Model: STV-4540B
Series: PRO1 Switched POPS
Phase: Single-phase
Input connectors: NEMA L6-20P
Output Connectors: 24 × IEC 60320 C13
Receptacle Type: IEC 60320 C13
Total power capacity: 3.3kW
Input Current: 20A
Total Number of Outlets: 24-Outlets
Cord Length: 10ft
Frequency: 50/60 Hz
Input Voltage: 208 VAC
Rack Height: 0U
Output Voltage: 208 VAC
Form Factor: 0U Rackmount
Height: 69"
Width: 1.75"
Depth: 2.25”
