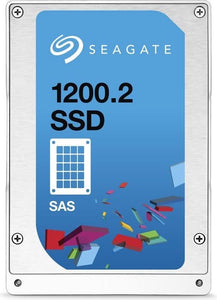

Seagate ST1920FM0043 1200.2 Scalable Endurance 1.92Tb SAS-III MLC 2.5-Inch Solid State Drive

Overview

The Seagate 1200.2 SSD family includes the next-generation of high-capacity, high performance SAS SSDs designed with multiple endurance offerings optimized for demanding enterprise applications and maximum TCO savings. The 1200.2 SAS SSD family delivers ultra-fast, consistent and easily scalable performance that exceeds 12Gb/s SAS single port bandwidth. By removing the storage bottleneck, it closes the gap between processor and data storage performance and significantly improves overall system and application responsiveness. The 1200.2 SAS SSD family also provides consistent low-latency data access, reliably accelerating enterprise and cloud storage systems. The 1200.2 SAS SSD family leverages Seagate’s decades of enterprise SAS expertise and proven feature set to deliver the highest levels of reliability, data integrity and data security for mission critical enterprise applications. The 1200.2 SAS SSD family delivers best-in-class data protection and reliability by integrating full internal and external data path protection (T10 DIF), Seagate’s advanced ECC algorithms, media life cycle management and other techniques for extending flash memory life. With advanced power-loss data protection, the 1200.2 SSD maintains high data integrity to prevent loss of user data in the event of unexpected power interruptions. The 1200.2 family implements security features to prevent unauthorized access to a drive and safeguards stored data with three levels of security, including Secure Downloads & Diagnostics, TCG-compliant Self-Encrypting Drive and FIPS drive.



Specifications

Model Number:  ST1920FM0043

Brand:  Seagate

Alt Part Number(s):  ST1920FM0043

Product Type:  Internal Solid State Drive (SSD)



Technical Description

Brand:  Seagate

Model:  ST1920FM0043

Capacity:  1.92TB

Spindle Speed:  Solid State Memory - MLC

Interface Type:  SAS Serial Attached SCSI

Disk Size:  2.5inx15mm SFF Server Hard Drive

Sustained Throughput (MBps):  1550 / 850

Electrical Interface Speed:  SAS-3 Serial Attached SCSI v3 - 12.0Gbps

Sequential Read (MB/s) Peak, 128KB:  1550

Sequential Write (MB/s) Peak, 128KB:  850

Random Read (IOPS) Peak, 4B QD 32:  190,000

Random Write (IOPS) Peak, 4B QD32:  15,000

Average Latency:  115

Height (in/mm, max):  0.591/15.00

Width (in/mm, max):  2.760/70.10

Depth (in/mm, max):  3.955/100.45



Features & Benefits

Dual port 12Gb/s SAS interface for the highest level of enterprise reliability, availability and scalability

Industry-leading storage density range including 4TB-class capacity in a 2.5-inch form factor

Ultra-fast performance of up to 1900MB/s that nearly saturates both 12Gb/s ports

Endurance options to match the needs of a wide range of enterprise workloads

SAS dual-port communication path for redundant, failover I/O communication to ensure data availability in critical production systems

Power loss data protection circuit to prevent loss of data in the event of unexpected power interruptions or hot swap

Superior data security including Secure Downloads & Diagnostics, and Seagate Secure™ Self Encrypting Drive (SED) and FIPS SED models

Advanced error correction for high level of data integrity
