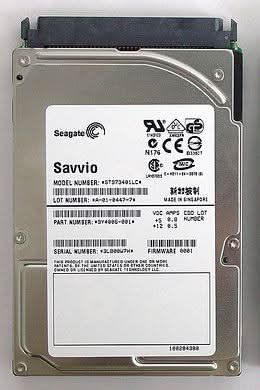

Seagate Savvio ST973401LC 73GB 10KRPM 8MB Ultra-320 SCSI 80-PIN 3.5" Hard Drive

Technical Information

• Storage Capacity:     73.40 GB

Drive Performance

• Maximum External Data Transfer Rate:     320 MBps (2.5 Gbps)
• Maximum Internal Data Transfer Rate:     94 MBps (752 Mbps)
• Rotational Speed:     10000 rpm
• Buffer:     8 MB
• Average Seek Time:     4.50 ms
• Average Latency:     3 ms

Interfaces/Ports

• Drive Interface:     Ultra320 SCSI
• SCSI Pin:     80-pin

Power Description

• Input Voltage:     12 V DC

Physical Characteristics

• Drive Type:     Internal
• Drive Width:     2.5"
• Height:     0.6"
• Width:     2.8"
• Depth:     4.4"
• Weight (Approximate):     1.10 lb

Miscellaneous

• Additional Information:
• Formatted Internal Transfer Rate(min): 62 MBytes/sec
• Formatted Internal Transfer Rate(max): 94 MBytes/sec
• Average Formatted Transfer Rate: 52 MBytes/sec
• Spinup Time: 20 sec
• Power-on to Ready Time: 20 sec
• Total Tracks: 204,208
• Track Density (TPI): 105 tracks/inch
• Bytes/Track (avg): 360,000
• Operating Temperature Change(max): 20 deg C/hr
• Nonoperating Temperature Change(max): 20 deg C/hr
• Operating Humidity Change(max): 20 percent per hour
• Certifications & Standards:
• S.M.A.R.T.

Warranty

• Limited Warranty:     5 Year
