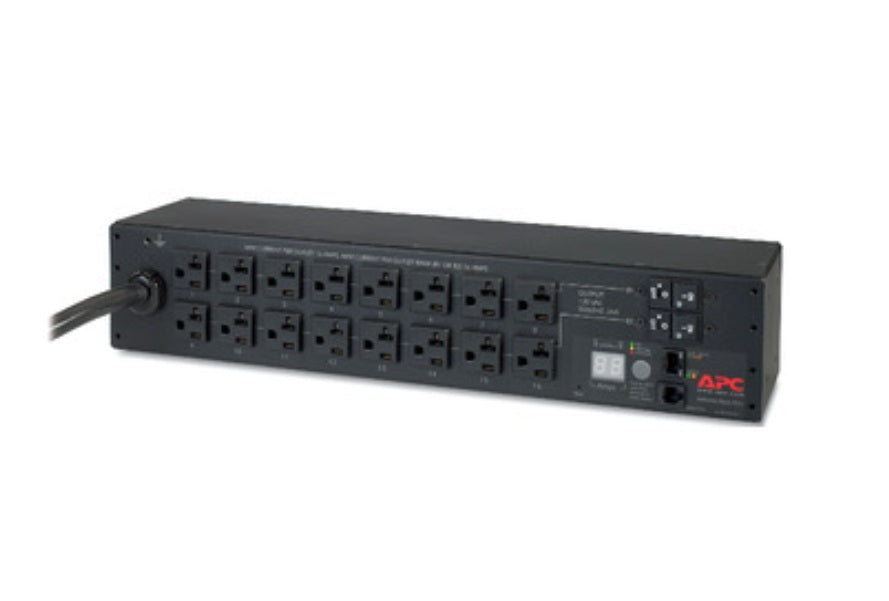

Schneider NetShelter Metered Rack AP7802B 16-Outlets 7.2 kW Power Distribution Unit
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The APC AP7802B is a NetShelter Metered Rack Power Distribution Unit (PDU) designed to deliver reliable power distribution and real-time monitoring. Unlike the previous vertical ZeroU models, the AP7802B is built for a 2U horizontal rackmount form factor, making it ideal for enclosures where side-channel clearance is limited but horizontal rack space is available. It functions as a metered-only single-phase device, providing active current tracking to prevent circuit overloads without downstream remote switching.
Specifications
Model Number: AP7802B
Brand: Schneider
Alt Part Number(s): AP7802B
Product Type: Power Distribution Unit
Technical Description
Brand: Schneider
Model: AP7802B
Series: NetShelter Metered Rack
Phase: Single-phase
Input Current: 30A
Input plug: NEMA L5-30P
Output connectors: 16 × NEMA 5-20R
Total Number of Outlets: 16-Outlets
Total power capacity: 7.2 kW
Cord Length: 12 ft
Load capacity: 2,880 VA
Frequency: 50/60 Hz
Input Voltage: 120 V AC
Rack Height: 2U
Output Voltage: 100–120 V AC
Form Factor: 2U Rackmount
Height: 70.5"
Width: 2.17"
Depth: 1.81"
