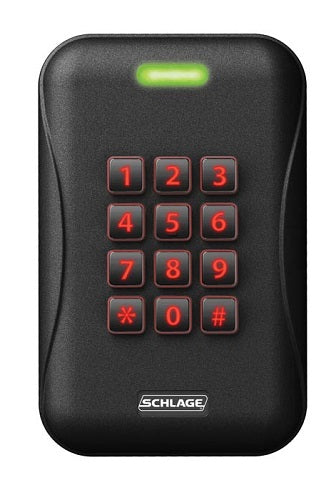

Schlage MTK15 Multi-Technology Single Gang 2.5-Inch Read Range Reader

Specifications

Mfr Part Number:  schlage MTK15

Brand:  Schlage

Model Number:  schlage MTK15

Type:   Reader



Technical Description

Brand:  Schlage

Model:  Schlage MTK15

Frequency:  13.56 MHz and 125 kHz

Standard Default PIV Output:  75 bit†

Wiring:  18 or 20 AWG 12 shielded wire , depending on distance to panel

Read Range:  Proximity: Up to 5” (12.7 cm)

MIFARE:  Up to 4” (10 cm)

DESFire EV1:  Up to 2” (5.1 cm)

PIV Credential:  Up to 2.5” (6.5 cm)

Power:  5-16 VDC

Operating Temperatures:  -40 to 158F (-40 to 70C)

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Height:  5.1 In

Width:  3.25 In

Depth:  0.76 In



Features

Accommodates interior, exterior, metal, and non-metal installation environments

Two-factor Authentication with anti-bacterial keypad

Recognizes most proximity credentials, and Schlage smart credentials (MIFARE classic and MIFARE DESFire EV1)

Reads CSN (card serial numbers) of HID iCLASS, Inside Technologies PicoTag, ST Microelectronics, Texas Instruments Tag-It, and Phillips I-Code

FIPS 201-1 Compliant

NFC Compatible

Quick-connect design for easy installation

Simple wiring – color scheme is identical to most readers in the market

Easy-to-install mounting bracket

Tri-state LED (red, green, amber) visual indicator and audio feedback representing status and activity information, easily discernible for the audibly or visually impaired.

Rounded corners, flush fit to wall

Wiegand output for simple interface with most access control panels
