Description
Overview

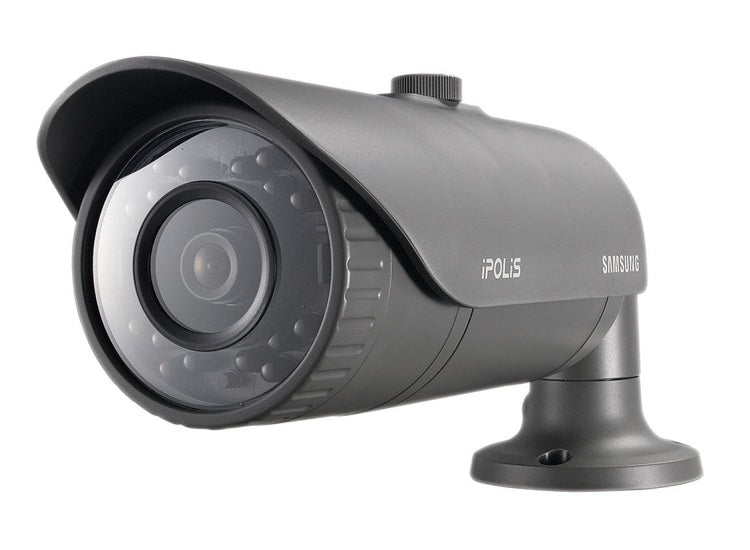

The SNO-6011R from Samsung Techwin's WiseNetIII network range features the most advanced technology with 2 megapixel 1080p high definition images. Its high end functions include 120dB WDR and built in adaptive LED illumination creating clear images in complete darkness. With enhanced features and new technologies which combat the challenges of tough environmental conditions the SNO-6011R meets the needs of the professional security market. Rated to IP66 with integrated sunshield and mounting bracket, the SNO-6011R can be wall or ceiling mounted to ensure the correct field of view every time.
Specifications
Model Number: SNO-6011RN
Brand: Samsung
Alt Part Number(s): SNO-6011RN/EX
Product Type: Network Security Camera
Technical Description
Brand: Samsung
Model: SNO-6011RN / SNO-6011RN/EX
Series: Techwin's WiseNetIII
Technology: Digital - IP
Housing Color: Gray
Image Sensor: Day/Night (IR)
Optical Format: 1/2.8"
Image Sensor: CMOS
Resolution: HD 1920 x 1080
Scanning Method: Progressive
Compression: H.264, MJPEG
PoE Class: 802.3af: <= 15.4 W
Environment: Outdoor (IP65+)
Lens: Fixed
Fixed Focal Length: 3.8
Video Connection(s): BNC, RJ-45/12
Power: PoE
Internal Storage: Memory Card Slot
Special Features: Digital Noise Reduction , ONVIF Conformant, Privacy Masks, Video Motion Detection, Wide Dynamic Range
Infrared Distance: 0~60 Feet
Weatherproof: IP66 grade
Mirror: Off / On
Digital Noise Reduction: SSNRIII (2D+3D noise filter) (Off / On)
Zoom Ratio: 3.8mm fixed
Scanning Vertical: CVBS : 1.0 Vp-p / 75? composite, 704 x 480(N), 704 x 576(P)
Resolution: 2 Megapixel
IR Distance: 15m (49.21ft)
Automatic White Balance: ATW / AWC / Manual / Indoor / Outdoor
Back Light Compensation: Off / BLC
S/N Ratio: 50dB
Motion Detection Tracking: Off / On (4ea 4points polygonal zones)
Scanning Horizontal: Progressive
Angle of View: H : 84.5° / V : 45.8° / D : 98.8°
Electronic Shutter: Auto / A.FLK / Manual (1/30 ~ 12,000sec)
Dimensions (W x H): 77.1 x 83.0 x 302.4mm (3.04" x 3.27" x 11.91")
Automatic Gain Control (AGC): Off / Low / Middle / High
Voltage: PoE
Durability: Weather Resistant
Compression Method: H.264, M-JPEG
Protocols: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, IPv4, IPv6
Mount Type: Ceiling, Wall
Lens Size: 3.8mm
Lens Type: Fixed
Image Device: 1/2.8" PS Exmor 2.38M CMOS
Power Consumption: Max. 8.5W
Privacy Zone: Off / On (32ea polygonal zones)
Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
Operating Humidity: Less than 90% RH
Minimum Scene Illumination: Color : 0.3Lux (F2.0, 50IRE), 0.03Lux (2sec, 50IRE), B/W : 0Lux (IR LED on)
Connection Type: Wired
IR LEDs: 16ea
Image Pixels-Effective: 1,944(H) x 1,224(V)
Image Pixels Total: 1,952(H) x 1,236(V)
Features
Max. 2M (1920 x 1080) resolution, 1080p Full HD support
30fps@1080p Full HD
Built-in 3.8mm fixed lens
Day & Night (ICR), Enhanced DIS, Defog
WDR (120dB), IR LED (IR distance 15m, 16ea)
Built-in SD/SDHC/SDXC memory slot
Multi-crop streaming
IP66 Rated
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
