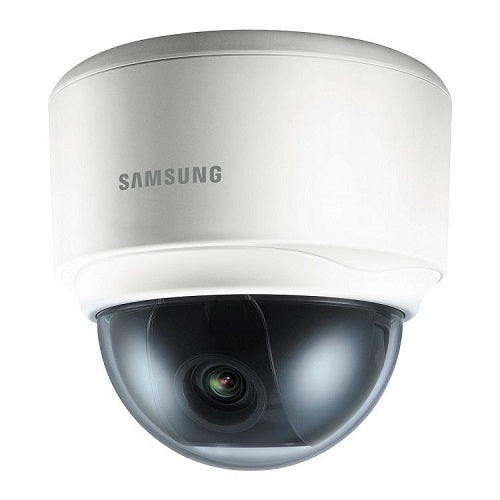

Samsung SND-3082N Techwin 4-CIF Day-Night WDR IP Network Dome Camera

Overview

The SND-3082 network camera utilizes Samsung Techwin’s A1 DSP chipset to deliver 4-CIF resolution images with best in class clarity and quality. Featuring Wide Dynamic Range (WDR) technology it is able to tackle challenging lighting conditions in order to display an well-balanced image across the entire scene, making it suitable for areas that have strong light/dark contrasts. A multi-streaming feature means that H.264 or MPEG4 and MJPEG can be transmitted simultaneously, enabling real-time monitoring, high-quality or high efficiency recording, mobile monitoring, E-mail notification and saving to SD memory card.



Specifications

Model Number:  SND-3082N

Brand:  Samsung

Alt Part Number(s):  SND-3082N

Product Type:  Dome Camera



Technical Description

Brand:  Samsung

Model:  SND-3082N

Camera Signal:  Network IP

Connection Type:  Wired

Infrared Distance:  Non Infrared

Lens Type:  Varifocal

Lens Size:  2.8-11mm

Mount Type:  Ceiling, Wall

Compression Method:  H.264, MPEG-4, M-JPEG

Durability:  Indoor

Voltage:  12vDC, 24vAC, PoE

Automatic Gain Control (AGC):  AGC (Low / Middle / High)

Dimensions (W x H):  Ø133.0 x 129.4mm (Ø5.24" x 5.09")

Electronic Shutter:  NTSC:Off / Auto (1/100 ~ 1/10,000sec), PAL:Off / Auto (1/120 ~ 1/10,000sec)

Image Device:  1/3" Super HAD PS CCD

Image Pixels Total:  NTSC: 811(H) x 508(V), PAL: 795(H) x 596(V)

Image Pixels-Effective:  NTSC: 768(H) x 494(V), PAL: 752(H) x 582(V)

Minimum Scene Illumination:  Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x) B/W : 0.04Lux (F1.2, 50IRE), 0.0001Lux (Sens-up 512x)

Operating Humidity:  20 to 80% RH

Operating Temperature:  -10°C ~ +55°C (+14°F ~ +131°F)

OSD Menu:  English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Norwegian, Finnish

Power Consumption:  Max. 6W

Privacy Zone:  Off / On (12 polygonal programmable zones, 4 point polygonal method)

Protocols:  TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QOS, ONVIF

S/N Ratio:  52 dB

Scanning Horizontal:  NTSC: 15.734KHz, PAL: 15.625KHz

Scanning System:  Progressive (If WDR on, interlaced scan)

Scanning Vertical:  NTSC: 59.94Hz, PAL: 50Hz

Signal System:  NTSC, PAL

Video Output:  CVBS : 1.0 Vp-p / 75? composite

Digital Noise Reduction:  Motion adaptive 2D+3D noise filter (Off / Low / Middle / High / User)

Mirror:  Off / On

Motion Detection Tracking:  Off/On (4 programmable zones)

Flickerless:  Off / On

Back Light Compensation:  Off / BLC / WDR

Automatic White Balance:  ATW1 / ATW2 / AWC / 3200°K / 5600°K



Features

Max. 30(25)fps at 4CIF resolution

2.8 ~ 11mm (3.9x) varifocal lens

H.264, MPEG-4, MJPEG multiple codec

Multiple streaming

Tampering

PoE, SD memory, Bi-directional audio support



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
