Description
Overview

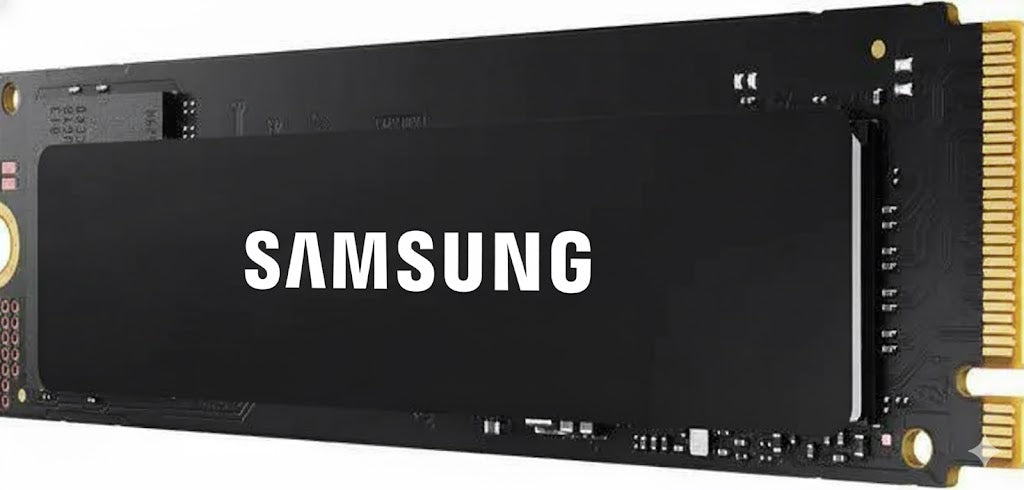

Samsung PM9C1b MZVL8256HFJD-00B07 256GB PCI M.2 Express Gen.4 x4 512 Bytes SSD
Specifications
Model Number: MZVL8256HFJD-00B07
Brand: Samsung
Alt Part Number(s): MZVL8256HFJD-00B07
Product Type: Solid State Drive
Technical Description
Brand: Samsung
Model: MZVL8256HFJD-00B07
Capacity: 256GB
Form Factor: M.2
Interface: PCIe Gen4 x4
NVMe Compliance: NVM Express Specification Rev. 2.0 (Mandatory Only)
Bytes per Sector: 512 Bytes
Security: TCG OPAL (v2.01) Compliant for SED
RoHS Compliance: RoHS / Halogen Free
Sequential Read (128KB): Up to 6,200 MB/s
Sequential Write (128KB): Up to 3,800 MB/s
Random Read (4KB): Up to 500K IOPS
Random Write (4KB): Up to 800K IOPS
Active Read (Typ, 3.3V): 4.8 W
Active Write (Typ, 3.3V): 4.3 W
Idle (Typ.): 50 mW
Sleep (Typ.): 5 mW
Supply Voltage: 3.3V ± 5%
Voltage Ripple/Noise (Max.): 200mV p-p
UBER: < 1 sector per 10^15 bits read
MTBF: 1.5 million hours
Operating Temperature: 0°C to 70°C
Non-operating Temperature: -40°C to 85°C
Non-operating Humidity: 5% ~ 95% (non-condensing)
Non-operating Shock: 1,500 G (0.5ms, half sine)
Non-operating Vibration: 20 G (20Hz ~ 2,000Hz, sinusoidal)
PCIe Compliance:
• PCIe Gen.4 16Gb/s Interface, up to 4 Lanes
• PCI Express Base Specification Rev. 4.0
• PCI Express M.2 Specification Rev. 4.0
Power Saving Features:
• APST Support
• L1.2 Mode Support
• Admin & NVM Command Set Support
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
