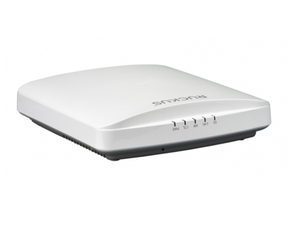

Ruckus Wireless Access Point Dual Band 802.11ax ZoneFlex R550 901-R550-US00

Overview

The R550 access point (AP) with the Wi-Fi 6 (802.11 ax) technology delivers the ideal combination of increased capacity, improved coverage and affordability in dense environments. The R550 is the mid-range dual-band, dual-concurrent AP that supports four spatial streams (2x2:2 in 2.4GHz/5GHz). The R550 supports peak data rates of up to 1774 Mbps and efficiently manages up to 512 clients connections.Wi-Fi capacity requirements in classrooms, office spaces, and medium-size venues are rising due to the increase in the number of Wi-Fi connected devices. An increase in bandwidth requirements for applications and an ever-growing assortment of IoT devices puts further strain on already stretched Wi-Fi networks.



Specifications

Model Number:  901-R550-US00

Brand:  Ruckus

Alt Part Number(s):  901-R550-US00

Product Type:  Wireless Access Point



Technical Description

Brand:  Ruckus

Model:  901-R550-US00

Data Transfer Rate:  1774 Mbps

Frequency Band:  2.4 GHz, 5 GHz

Connectivity Technology:  Wireless

Interfaces:  1 x 1000Base-T (PoE) - RJ-45 | 1 x 1000Base-T - RJ-45 | 1 x USB 2.0 - Type A

Capacity:  Maximum number of configured SSIDs: 31 | Maximum number of clients: 512

Data Link Protocol:  Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)

Voltage Required:  DC 48 V / (PoE)

Power Consumption Operational:  18.71 Watt

Min Operating Temperature:  32 °F

Max Operating Temperature:  122 °F

Humidity Range Operating:  0 - 95% (non-condensing)

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  External

Width:  7.5 in

Depth:  6.9 in

Height:  1.9 in
