Description
Overview

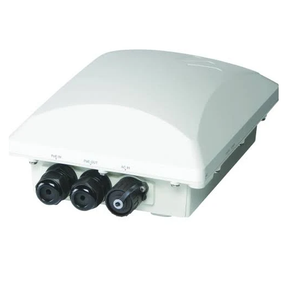

The Ruckus ZoneFlex™ 7782 Series comprise the industry's first 802.11n outdoor access points featuring the option of a 30° narrow beam antenna, a 120° antenna, internal omni-directional antennas, or an external antenna version along with BeamFlex™ technology to deliver up to 7 dB of additional signal gain and up to 15 dB of interference mitigation. The ZF 7782 Series was specifically designed to address the needs of very high-density deployments such as would be found around stadiums, arenas, airports, etc. These venues are characterized by tens of thousands of people in close proximity to each other and most are carrying mobile data devices of some sort. These are amongst the most challenging wireless environments imaginable and are ideally suited to Wi-Fi technology. High-density best practices usually call for a large number of AP's to get the needed capacity, but care must be taken to limit co-channel interference. The narrow beam antenna in the ZF 7782-N is able to focus RF energy into a specific area.
Specifications
Model Number: 901-7782-US81
Brand: Ruckus
Alt Part Number(s): 901-7782-US81
Product Type: Wireless Access Point
Technical Description
Brand: Ruckus
Model: 901-7782-US81
ISM Minimum Frequency: 2.40 GHz
ISM Maximum Frequency: 2.48 GHz
UNII Minimum Frequency: 5.15 GHz
UNII Maximum Frequency: 5.82 GHz
Number of Network (RJ-45) Ports: 1
Wireless LAN Standard: IEEE 802.11n
Wireless Transmission Speed: 900 Mbit/s
Ethernet Technology: Ethernet , Fast Ethernet , Gigabit Ethernet
Input Voltage: 110 V AC , 220 V AC
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Form Factor: Wall Mountable , Ceiling Mountable
Length: 9.4 In
Width: 7.68 In
Height: 4.65 In
* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
