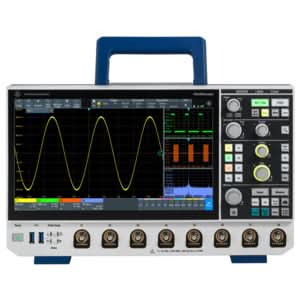

Rohde & Schwarz MXO 3 Series MXO38-100 100 MHz 8-Channel Mixed Signal Oscilloscope
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Rohde & Schwarz MXO38-100 MXO 3 Series mixed signal oscilloscope features 100 MHz bandwidth, eight analog channels, a 2.5 GS/s sampling rate, 125 Mpts memory, and 12-bit vertical resolution. It includes an 11.6-inch Full HD capacitive touchscreen, digital channel functionality through an optional upgrade, USB, HDMI, and LAN interfaces, a 3.5 ns rise time, an operating temperature range of 0°C to 45°C, a 3-year warranty, and accessories including one 500 MHz 10X passive probe per channel, an accessories bag, a quick start guide, and a power cord.
Specifications
Model Number: MXO38-100
Brand: Rohde & Schwarz
Alt Part Number(s): MXO38-100
Product Type: Mixed Signal Oscilloscope
Technical Description
Brand: Rohde & Schwarz
Model: MXO38-100
Bandwidth: 100 MHz
Analog Channels: 8
Digital Channels: Upgrade Required
Sampling Rate: 2.5 GS/s
Memory: 125 Mpts
Type: MSO
Vertical Resolution: 12 bit
Display Type: 11.6-inch Full HD capacitive touch
Series: MXO 3 Series
Alternate Product Number: 1335.2050P81
Includes: Base Unit; 500 MHz 10X Passive Probe per channel; Accessories Bag; Quick Start Guide; Power Cord
Interface: USB; HDMI; LAN
Operating Temperature Range: 0–45°C
Risetime: 3.5 ns
Warranty: 3 Years
