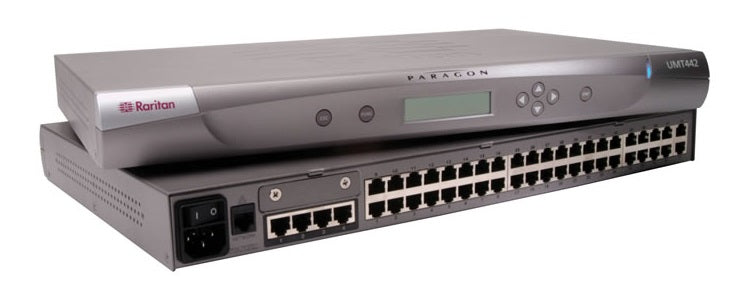

Raritan P2-UMT442 Paragon II UMT442 42-Ports 4U Rack Stand-Alone KVM Switch-Box

Overview

The UMT442 is the best stand-alone Cat5 solution for environments with up to four users. With 42 server ports, the UMT442 utilizes Paragon II's superior KVM switch technology to provide the levels of accessibility, manageability, security and superior video quality needed to simplify the management of business critical data centers.



Specifications

Model Number:  P2-UMT442

Brand:  Raritan

Alt Part Number(s):  P2-UMT442

Product Type:  KVM Switch



Technical Description

Brand:  Raritan

Model:  P2-UMT442

Product Name:  P2-UMT442 4U 42 Port KVM Switch

Series:  Paragon II UMT442

Product Type:  KVM Switchbox

Number of Computers Supported:  42

Number of Local Users Supported:  4

Network (RJ-45):  Yes

Number of Network (RJ-45) Ports:  43

Maximum Video Resolution:  1600 x 1200

Form Factor:  Rack-mountable

Rack Height:  1U

Height:  1.8"

Width:  17.3"

Depth:  11.4"

Certifications & Standards:  FCC Part 15, VCCI

Input Voltage:  240 V AC

Platform Supported:  PC, Sun, Mac



Features

Powerful BIOS-level access and full keyboard and mouse control of Windows, SUN and USB servers

High performance analog switching provides extremely high video quality

Stacking allows expansion of each switch to attach up to 128 devices per switch with a single cable.

Simplifies cabling between tiers by replacing pass through cables with a single expansion cable saving up to 32 cables per switch.

Stacking allows a reduction in the number of units deployed by 33% saving initial costs, rack space and HVAC costs.

Highly scaleable architecture allows for connection of up to 10,000 attached devices in a single logical deployment.

Leverages Raritans Cat5 simplicity technology allowing any standard UTP cables to be used

Optional IP Access extends the typical distance between Paragon components allowing users access from anywhere

Provides a single, consolidated view and control of Raritan Remote Power Control Units connected to Paragon II

GUI software simplifies management and monitoring of data center by consolidating administration of attached equipment.

Allows serial devices to be connected via Raritans AUATC adaptors.

Backward compatible with existing Paragon equipment

Very small form-factor saves expensive rack space and minimizes electrical consumption by lowering HVAC provisioning needs.

Integrated power supply ensures proper power provision and system reliability.



* Product descriptions and part numbers are subject to change, and may not reflect manufacturer product changes. Please check the manufacturer's website and use the item's manufacturer part number to find the most up to date product description.
