- Overview
| Specifications | |
| Model Number | QLE2464-CK |
| Condition | New |
| Brand | QLogic |
| Alt Part Number(s) | QLE2464-CK |
| Type | Host Bus Adapter |
| Technical Description | |
| Brand | QLogic |
| Model | QLE2464-CK |

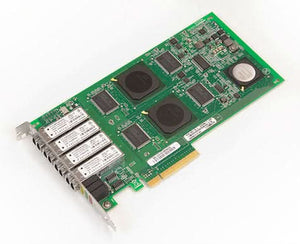

| Product Name | Qlogic 4GB PCI-E (X8) Quadport HBA |
| Product Type | Fibre Channel Host Bus Adapter |
| Height | 4.4" |
| Width | 8" |
| FC Class Supported | Class 2, Class 3 |
| Form Factor | Internal |
| Data Transfer Rate | 4 Gbps Fibre Channel |
| Topology | Point-to-Point, Arbitrated Loop, Switched Fabric |
| Ports/Channels | 4 x LC Fibre Channel |
| Standard Memory | 1 MB SDRAM Per Port |
| 1 MB Flash | |
| 256 Byte NVRAM | |
| Host Interface | PCI Express 2.50 GHz x8 |
| Connectivity Media | Multi-mode |
| Certifications & Standards | UL60950 |
| cUL | |
| CSA C22.2 No.60950 | |
| 73/23/ECC Low Voltage Directive | |
| Class 1 Laser Product per DHHS 21CFR J | |
| TUV | |
| EN60950-1: 2001 | |
| EN60825-1: 1994+A1+A2 | |
| EN60825-2: 1994 +A1 | |
| FCC Part 15, Class A | |
| Industry Canada ICES-003, Class A | |
| 89/336/EEC EMC Directive | |
| CE Mark: EN55022: 1998 | |
| CISPR22:1997 Class A | |
| EN55024: 1998 | |
| EN61000-3-2:1995 | |
| EN61000-3-3:1994 | |
| VCCI, Class A | |
| CNS 13438 Class A | |
| AS/NZS 3548 Class A | |
| MIC | |
| Distance Supported | 229.66 ft 62.5/125 µm Optical Fiber |
| 492.13 ft 50/125 µm Optical Fiber | |
| Fabric Supported | N_Port |
| NL_Port | |
| F_Port | |
| FL_Port | |
| Protocols | FCP-IP |
| SCSI-FCP | |
| FC-Tape | |
| FC-FS | |
| Backward Compatibility | PCIe 1.0a |
| Number of Ports/Channels | 4 |
* | |
