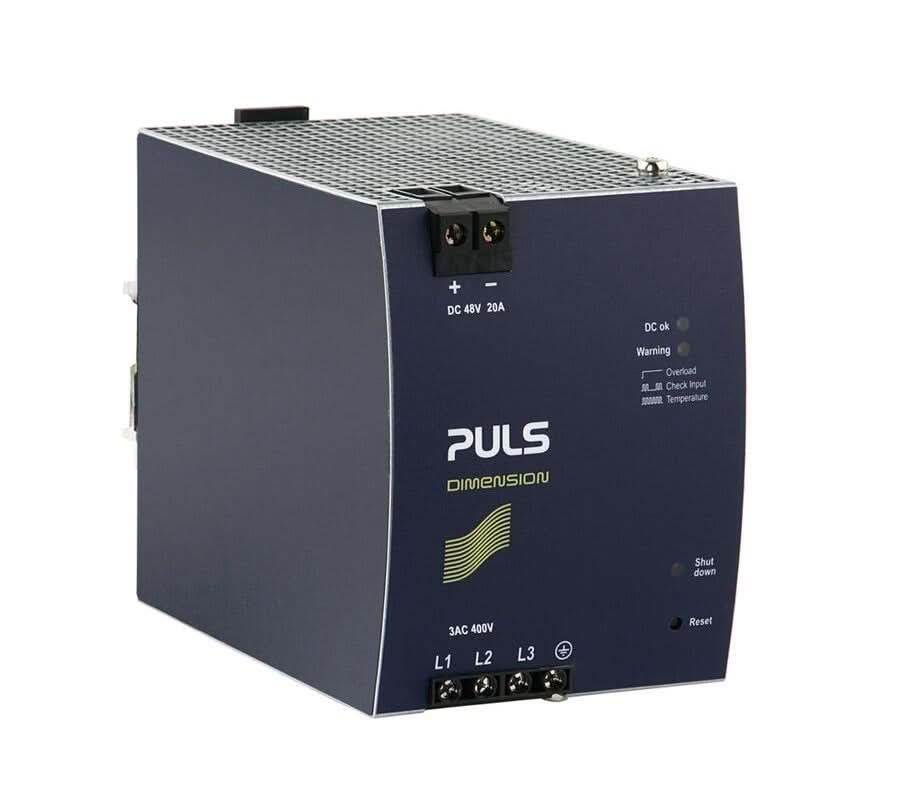

Puls DIMENSION X XT40.722 3 Phase AC 480V DIN Rail AC-to-DC Power Supply
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Puls XT40.722 is a high-performance industrial AC-to-DC power supply from the Puls DIMENSION X series. It converts three-phase AC input into 72V DC output and is designed for industrial applications requiring high power, reliability and short-term overload capability
Specifications
Model Number: XT40.722
Brand: Puls
Alt Part Number(s): XT40.722
Product Type: Power Supply
Technical Description
Brand: Puls
Model Number: XT40.722
Series: DIMENSION X
Input Voltage: 3-phase 480 VAC ±15%
Input Voltage Range: 408–552 VAC
Input Frequency: 50–60 Hz ±6%
Input Current: 1.4 A per phase @ 480 VAC
Inrush Current: Typically 2 A peak
Power Factor: 0.93
Harmonic Correction: Active PFC
Output Voltage: 72 VDC
Rated Output Current: 13.3A
Peak Output Current: 16.7 A up to 15 seconds
Rated Output Power: 960W
Peak Output Power: 1200 W up to 15 seconds
Protection Rating: IP20
Mounting: DIN rail
