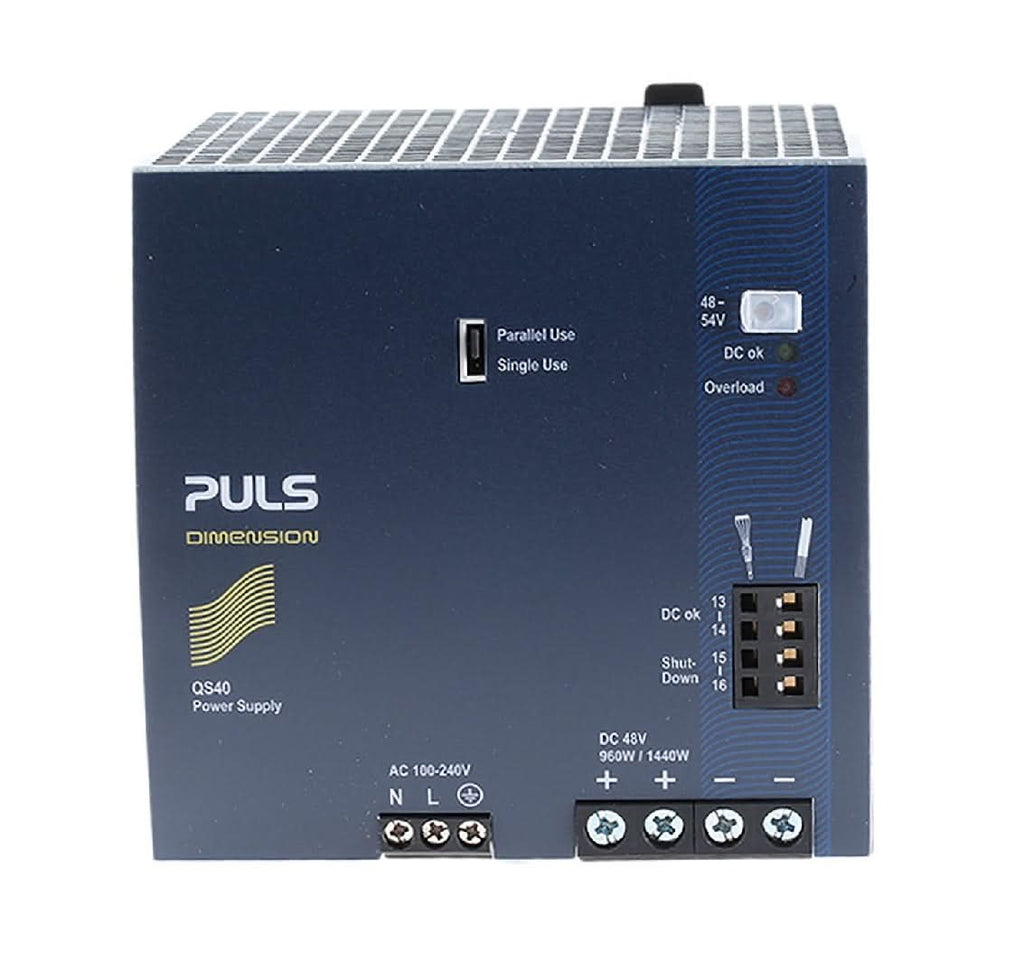

Puls DIMENSION Q QS40.481 Single Phase DC 48V DIN Rail Power Supply
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
The Puls QS40.481 is a high-efficiency industrial switched-mode power supply designed to convert single-phase AC input into a stable 48V DC supply. It is suitable for industrial automation, control panels, machinery and DC power distribution systems
Specifications
Model Number: QS40.481
Brand: Puls
Alt Part Number(s): QS40.481
Product Type: Power Supply
Technical Description
Brand: Puls
Model Number: QS40.481
Series: DIMENSION Q
Input Voltage: 100–240 VAC
Input Frequency: 50–60 Hz ±6%
Input phase: Single phase
Input current: 8.6 A @ 120 VAC / 4.5 A @ 230 VAC
Power factor: 0.99
Harmonic correction: Active PFC
Inrush current: 17 A / 11 A peak
Output voltage: 48 VDC
Voltage adjustment: 48–54 VDC
Output current: 20 A @ 48V
Output current: 17.8 A @ 54V
Rated output power: 960 W
Peak output power: 1440 W for 4 seconds
Peak current: 55 A for 10 ms
Efficiency: 95% typical @ 230 VAC
Protection rating: IP20
Mounting: DIN rail
