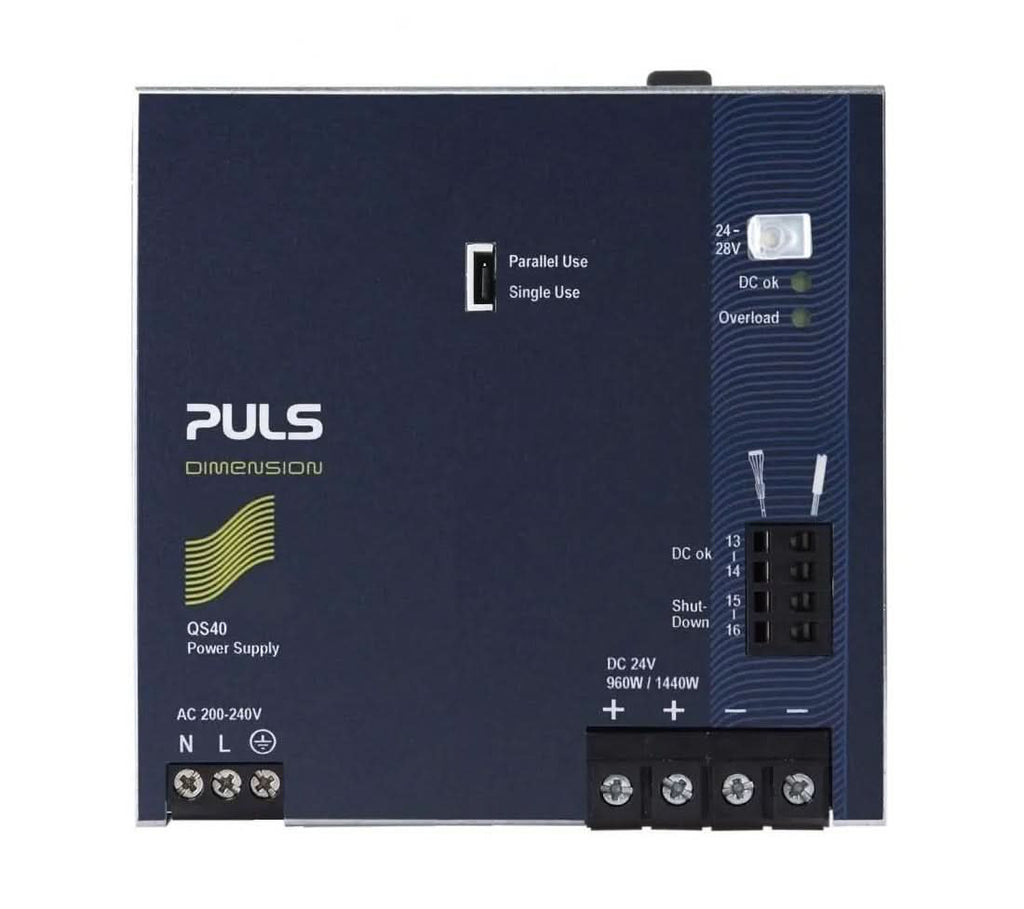

Puls DIMENSION Q QS40.244 960W Single Phase AC-to-DC DIN Rail Power Supply
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Puls QS40.244 is a high-performance, single-phase AC-to-DC industrial switched-mode power supply designed to provide a stable 24V DC output at 40A (960W) for industrial automation and control systems
Specifications
Model Number: QS40.244
Brand: Puls
Alt Part Number(s): QS40.244
Product Type: Power Supply
Technical Description
Brand: Puls
Model Number: QS40.244
Series: DIMENSION Q
Input Voltage: 200–240 VAC
Input frequency: 50–60 Hz
Input phase: Single phase
Input current: 4.6 A @ 230 VAC
Output Voltage: 24–28 VDC
Rated Output Voltage: 24 VDC
Rated Output Current: 40A
Rated Output Power: 960W
Peak Output Power: 1440 W for 4 seconds
Efficiency: Up to 94.6%
Power Factor: 0.96
Ripple Voltage: Max. 100 mVpp
Hold-up Time: Typically 30 ms
Protection Rating: IP20
Protection: Overload, short circuit, overvoltage
Cooling: Convection cooling
Mounting: DIN rail
