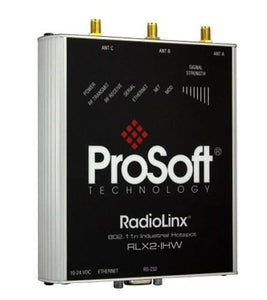

Prosoft RLX2-IHW-A 802.11abg DIN Rail Industrial Hotspot

Overview

The ProSoft Technology 802.11abg Industrial Hotspot (RLX2-IHW) is an industrial-grade wireless Ethernet radio for applications up to 5 mi. / 8km. The RLX2-IHW has an RF data rate up to 54 Mbps, using the IEEE 802.11b/g (2.4 GHz band) and 802.11a (5 GHz band) standards. The radio features Ultra-Fast access point switchover times of less than 10 ms, which is ideal for applications such as automated storage-retrieval systems, automotive skillet lines, and bottle filling machines.



Specifications

Model Number:  RLX2-IHW-A

Brand:  Prosoft

Alt Part Number(s):  RLX2-IHW-A

Product Type:  Industrial Hotspot



Technical Description

Brand:  Prosoft

Model:  RLX2-IHW-A

Shock:  IEC 60068 2-27 (20g, 3-Axis)

Vibration:  IEC 60068 2-6 (5g, 10Hz to 150Hz)

Ethernet Ports:  (1) 10/100/1000 Base-T, RJ45 connector

Serial Port:  (1) DB9 female (serial tunneling & encapsulation)

Antenna Ports:  (2) RP-SMA connectors (1 trans/rec, 1 rec only)

Wireless Standards:  802.11a, 802.11b, 802.11g, 802.11i

Transmit Power:  2.4 GHz: Up to 100 mW (20 dBm)

Operating Temperature:  -40°C to +75°C (-40°F to +167°F)

Humidity:  Up to 100% RH, with no condensation

External Power PoE (Power over Ethernet):  10 to 24 VDC , 802.3af Compliant

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Enclosure:  Extruded aluminum with DIN and panel mount



Features

802.11i, WPA-2 Personal/Enterprise using 128-bit AES encryption ensures secure networking

RADIUS security ensures secure networking with advanced authentication and encryption

Virtual Local Area Networks (VLAN) allow for secure network segmentation

Quality of Service (QoS) provides data prioritization for I/O control devices, video data, etc.

Ultra-Fast Roaming (under 10ms) maintains seamless, high-speed connections to one or more devices on moving equipment and machines (such as cranes, AGVs, and carriers) as they travel between Access Points

IGMP Snooping & Packet Filtering optimizes UDP multicast traffic for superior EtherNet/IP I/O communications

Supports the ability to communicate with multiple Ethernet devices when used with existing third-party wireless infrastructures

Supports Power over Ethernet (PoE) to reduce cabling costs
