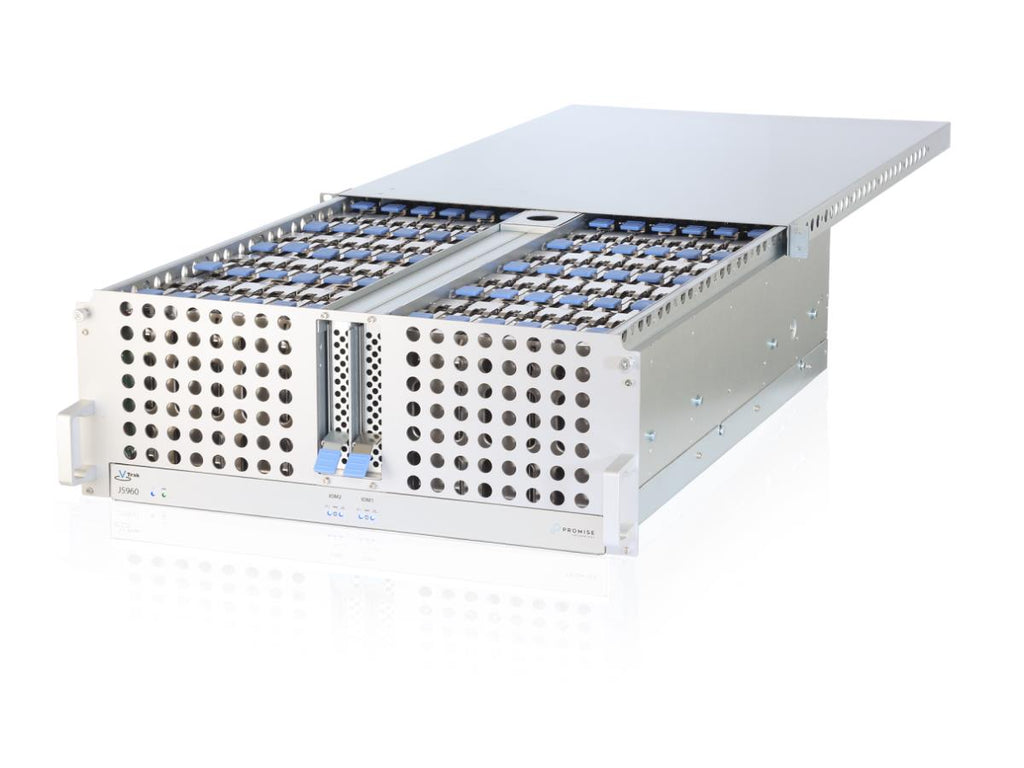

Promise VTrak J5960 VTJ5960SDX22TX 22TB 60-Bay 4U NL-SAS 1200W Gigabit Ethernet Network Storage Server
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Promise VTJ5960SDX22TX VTrak J5960 is a 4U rack-mountable network storage server with 60 hot-swappable 3.5" NL-SAS drives totaling 1,320TB using 22TB drives and 1200W power supply. It features 6 Mini SAS HD connectors per IOM for upstream or downstream connections, plus Gigabit Ethernet and RJ11 management ports, supporting enterprise-level high-density storage and scalability.
Specifications
Model Number: VTJ5960SDX22TX
Brand: Promise
Alt Part Number(s): VTJ5960SDX22TX
Product Type: Network Storage Server
Technical Description
Brand: Promise
Model: VTJ5960SDX22TX
Hard Drive / Size: 3.5"
Hard Drive / Interface Type: NL-SAS
Hard Drive / Bays Qty: 60
Data Link Protocol: Gigabit Ethernet
Series: VTrak J5960
Hard Drive Capacity / HDD: 22 TB
Storage Device Type: Network Storage Server
Cabinet Form Factor: 4U
Hard Drive / Installed Qty: 60
Power / Provided (W): 1200 Watt
Power / Voltage Required: 100-127Vac; 200-240Vac
Power / Device Type: Power Supply
Depth: 666 Mm
Width: 445 Mm
Height: 177 Mm
Interfaces & Connections: 6 Mini SAS HD connectors (SFF-8644) for upstream or downstream each IOM; 1 Gigabit Ethernet each IOM (management port); 1 RJ11 each IOM (management port)
