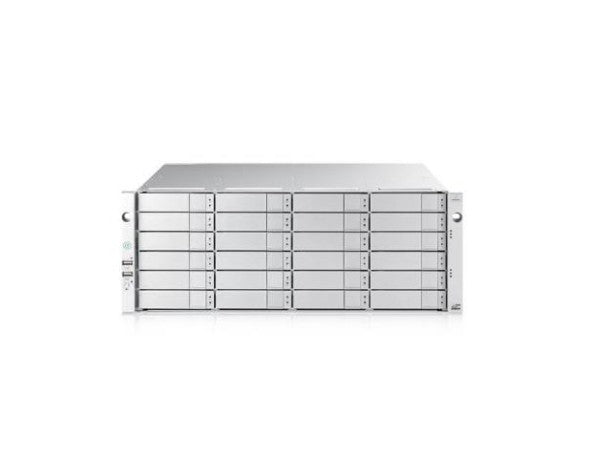

Promise VTrak D5800yxD VTD5800YXD14TX 14TB 24-Bay 4U NL-SAS 64GB RAM 800W RAID Storage Base System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Promise VTD5800YXD14TX VTrak D5800yxD is a 4U storage base system with 24 hot-swappable 3.5" NL-SAS drives at 14TB each, 64GB RAM installed (upgradable to 128GB), and dual 800W redundant power supplies. It supports RAID 0, 1, 5, 6, 10, 50, 60, features 2 x 12Gb SAS Mini-SAS expansion ports per controller, dual 1Gb Ethernet and RJ-11 management ports, and delivers enterprise-level high-performance, scalable storage.
Specifications
Model Number: VTD5800YXD14TX
Brand: Promise
Alt Part Number(s): VTD5800YXD14TX
Product Type: Storage Base System
Technical Description
Brand: Promise
Model: VTD5800YXD14TX
Hard Drive / Size: 3.5"
Hard Drive / Interface Type: NL-SAS
Data Link Protocol: Gigabit Ethernet
Series: VTrak D5800yxD
Hard Drive Capacity / HDD: 14 TB
RAM / Max Supported Size: 128 GB
Storage Device Type: Storage Base System
Cabinet Form Factor: 4U
RAM / Total Installed Size: 64 GB
Hard Drive / Installed Qty: 24
Power / Provided (W): 800 Watt
Power / Redundant Capable: Yes
Power / Device Type: Power Supply
Power / Installed Qty: 2
RAID Level: RAID 0, 1, 5, 6, 10, 50, 60
RJ-45 Qty: 2
RAM / Installed Qty: 4
Interfaces & Connections: Storage Expansion Ports: 2 x 2 12Gb SAS Mini-SAS (SFF-8644) per controller; Management Ports: 2 x RJ-45 1Gb Ethernet and 1 x RJ-11 Serial Port per controller
