- Overview

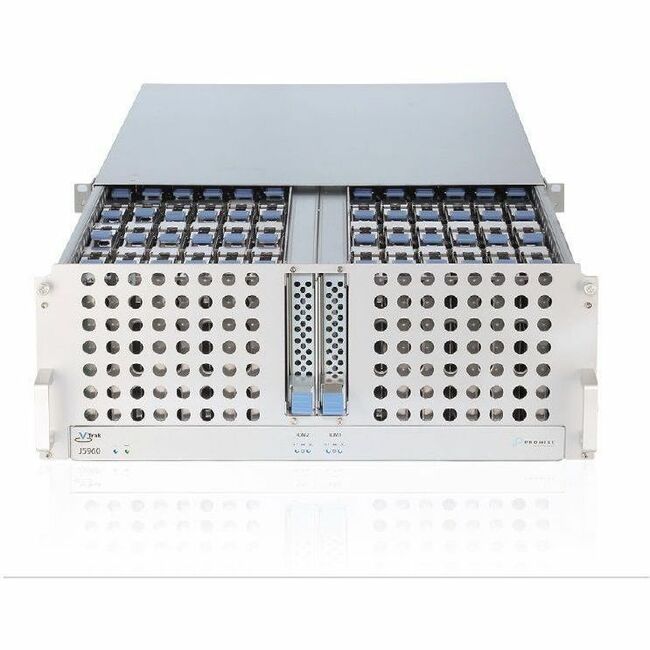

Promise VTrak J5960 VTJ5960DXX10TU NAS Storage System is a high-density 60-bay rack-mountable platform with dual 12Gb/s SAS controllers, 2 redundant 1200W power supplies, and 600TB installed capacity. It delivers enterprise-grade performance with over 15GB/s aggregate bandwidth, support for RAID, hot-swappable drives and components, cascading up to eight 4U60 enclosures, Energy Star ready PSUs, and advanced SCSI Enclosure Services management.
High-Density Storage, Expansion up to 8 Petabytes
visit www.promise.com for more information on PROMISE productsVTrak J5960 Data Sheet Version 0.9 VTrak J5960 Data Sheet Features The VTrak J5960 high-density SAS enterprise JBOD storage solution balances high performance and high capacity in a robust, quiet, energy efficient, cool running system. Each unit supports a Petabyte of storage capacity in a compact form factor with scalability potential to over 8 Petabytes per 8-unit cascade. To meet rapidly increasing demand for very high capacity storage, VTrak J5960 provides extremely high density. The SAS zoning feature enables simultaneous sharing of the giant JBOD storage enclosure among multiple connected server nodes. VTrak J5960 features fully redundant I/O modules, power supplies, and cooling units - in an all hot-swappable design - for constant high availability in enterprise environments, even in the event of component failure.
Optimized for High-Performance Datacenter
T
- High-Density Storage, Expansion up to 8 Petabytes
- 60 Bay Enterprise Storage Platform
- Massive capacity, cascade up to eight 4U60 JBOD enclosures
- Optimized for High-Performance Datacenter
- Huge bandwidth with six 12 Gb SAS ports per IOM; more than 15GB/s aggregatetransfer rate from 60pcs SAS HDDs
- Dual-port SAS drive for high availability or single-port SATA drive for cost efficiency
- Six multipurpose SAS ports (SFF-8644) per controller for connecting upstream ordownstream multiple cascaded JBODs
- SCSI Enclosure Services (SES) enclosure management based on ANSI T10 standard
- JBOD with Green DNA
- 80 Plus Platinum PSUs, superior power efficiency, Energy Star Ready
- Energy efficient SAS expander chip
- Less total power consumption
- Less heat emission
- Excellent thermal management
- Long life span of FAN and PSU
- Green Design, Green Production, and Green Commitment to The Environment
- Maintainability
- Cable-less hot-swappable IOM, power supply, fans and drives
- Work-efficient modular cable-less design
- SCSI Enclosure Services (SES)
Product Specification:
| Additional Warranty Information:
3-year standard limited warranty, optional extended warranty, optinal on-site parts replacement program (PSP) |
| Product Type: NAS Storage System |
| Manufacturer Part Number: VTJ5960DXX10TU |
| Manufacturer Website Address: http://www.promise.com |
| Protocols: SSH,Telnet,SMP |
| Limited Warranty: 3 Year |
| Form Factor: Rack-mountable |
| Manufacturer: Promise Technology |
| Product Model: J5960 |
| Product Name: VTrak J5960 NAS Storage System |
| Product Line: VTrak |
| Controller Type: 12Gb/s SAS |
| Brand Name: Promise |
| Number Of Controllers: 2 |
| Environmentally Friendly: Yes |
| Number Of Power Supplies Installed: 2 |
| Redundant Power Supply: Yes |
| Hard Drive Interface: 12Gb/s SAS |
| Raid Supported: Yes |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 60 |
| Number Of 3.5" Bays: 60 |
| Hdmi: Yes |
| Vga: Yes |
| Number Of Network (Rj 45) Ports: 1 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 1200 W |
| Hard Drive Configuration: 60 x 10TB |
| Total Hard Drive Capacity Installed: 600 TB |
| Number Of Hard Drives Supported: 60 |
| Number Of Hard Drives Installed: 60 |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Feature1: High-Density Storage, Expansion up to 8 Petabytes |
| Feature2: 60 Bay Enterprise Storage Platform |
| Feature3: Massive capacity, cascade up to eight 4U60 JBOD enclosures |
| Feature4: Optimized for High-Performance Datacenter |
| Feature5: Huge bandwidth with six 12 Gb SAS ports per IOM; more than 15GB/s aggregatetransfer rate from 60pcs SAS HDDs |
| Feature6: Dual-port SAS drive for high availability or single-port SATA drive for cost efficiency |
| Feature7: Six multipurpose SAS ports (SFF-8644) per controller for connecting upstream ordownstream multiple cascaded JBODs |
| Feature8: SCSI Enclosure Services (SES) enclosure management based on ANSI T10 standard |
| Feature9: JBOD with Green DNA |
| Feature10: 80 Plus Platinum PSUs, superior power efficiency, Energy Star Ready |
| Feature11: Energy efficient SAS expander chip |
| Feature12: Less total power consumption |
| Feature13: Less heat emission |
| Feature14: Excellent thermal management |
| Feature15: Long life span of FAN and PSU |
| Feature16: Green Design, Green Production, and Green Commitment to The Environment |
| Feature17: Maintainability |
| Feature18: Cable-less hot-swappable IOM, power supply, fans and drives |
| Feature19: Work-efficient modular cable-less design |
| Feature20: SCSI Enclosure Services (SES) |
