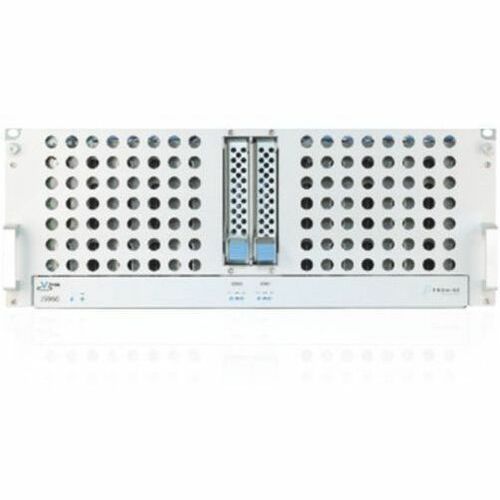

Promise VTrak J5960 VTJ5960DXX08HU High-Density Storage 60-Bay Enterprise Platform NAS Storage System
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Promise VTrak J5960 NAS Storage System VTJ5960DXX08HU is a 60-bay rack-mountable enterprise platform with dual 12Gb/s SAS controllers, 2 redundant 1200W power supplies, and 240TB installed capacity using 30 x 8TB drives. It delivers high-density, high-bandwidth storage with cascading up to eight 4U60 JBODs, hot-swappable I/O modules, drives, power and cooling units, 6 SAS ports per IOM, Gigabit Ethernet, HDMI and VGA, Energy Star ready PSUs, and SES-based enclosure management for enterprise reliability.
High-Density Storage, Expansion up to 8 Petabytes
The VTrak J5960 high-density SAS enterprise JBOD storage solution balances high performance and high capacity in a robust, quiet, energy efficient, cool running system. Each unit supports a Petabyte of storage capacity in a compact form factor with scalability potential to over 8 Petabytes per 8-unit cascade. To meet rapidly increasing demand for very high capacity storage, VTrak J5960 provides extremely high density. The SAS zoning feature enables simultaneous sharing of the giant JBOD storage enclosure among multiple connected server nodes. VTrak J5960 features fully redundant I/O modules, power supplies, and cooling units - in an all hot-swappable design - for constant high availability in enterprise environments, even in the event of component failure.
Optimized for High-Performance Datacenter
The VTrak J5960 is designed for enterprise environments that require very large capacity, high bandwidth and h
- High-Density Storage, Expansion up to 8 Petabytes
- 60 Bay Enterprise Storage Platform
- Massive capacity, cascade up to eight 4U60 JBOD enclosures
- Optimized for High-Performance Datacenter
- Huge bandwidth with six 12 Gb SAS ports per IOM; more than 15GB/s aggregatetransfer rate from 60pcs SAS HDDs
- Dual-port SAS drive for high availability or single-port SATA drive for cost efficiency
- Six multipurpose SAS ports (SFF-8644) per controller for connecting upstream ordownstream multiple cascaded JBODs
- SCSI Enclosure Services (SES) enclosure management based on ANSI T10 standard
- JBOD with Green DNA
- 80 Plus Platinum PSUs, superior power efficiency, Energy Star Ready
- Energy efficient SAS expander chip
- Less total power consumption
- Less heat emission
- Excellent thermal management
- Long life span of FAN and PSU
- Green Design, Green Production, and Green Commitment to The Environment
- Maintainability
- Cable-less hot-swappable IOM, power supply, fans and drives
- Work-efficient modular cable-less design
- SCSI Enclosure Services (SES)
Product Specification:
| Product Type: NAS Storage System |
| Manufacturer Part Number: VTJ5960DXX08HU |
| Manufacturer Website Address: http://www.promise.com |
| Protocols: SSH,Telnet,SMP |
| Form Factor: Rack-mountable |
| Manufacturer: Promise Technology |
| Product Model: J5960 |
| Product Name: VTrak J5960 NAS Storage System |
| Product Line: VTrak |
| Controller Type: 12Gb/s SAS |
| Brand Name: Promise |
| Number Of Controllers: 2 |
| Number Of Power Supplies Installed: 2 |
| Redundant Power Supply: Yes |
| Hard Drive Interface: 12Gb/s SAS |
| Raid Supported: Yes |
| Ethernet Technology: Gigabit Ethernet |
| Number Of Total Expansion Bays: 60 |
| Number Of 3.5" Bays: 60 |
| Hdmi: Yes |
| Vga: Yes |
| Number Of Network (Rj 45) Ports: 1 |
| Network (Rj 45): Yes |
| Maximum Power Supply Wattage: 1200 W |
| Hard Drive Configuration: 30 x 8TB |
| Total Hard Drive Capacity Installed: 240 TB |
| Number Of Hard Drives Supported: 60 |
| Number Of Hard Drives Installed: 30 |
| Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Feature1: High-Density Storage, Expansion up to 8 Petabytes |
| Feature2: 60 Bay Enterprise Storage Platform |
| Feature3: Massive capacity, cascade up to eight 4U60 JBOD enclosures |
| Feature4: Optimized for High-Performance Datacenter |
| Feature5: Huge bandwidth with six 12 Gb SAS ports per IOM; more than 15GB/s aggregatetransfer rate from 60pcs SAS HDDs |
| Feature6: Dual-port SAS drive for high availability or single-port SATA drive for cost efficiency |
| Feature7: Six multipurpose SAS ports (SFF-8644) per controller for connecting upstream ordownstream multiple cascaded JBODs |
| Feature8: SCSI Enclosure Services (SES) enclosure management based on ANSI T10 standard |
| Feature9: JBOD with Green DNA |
| Feature10: 80 Plus Platinum PSUs, superior power efficiency, Energy Star Ready |
| Feature11: Energy efficient SAS expander chip |
| Feature12: Less total power consumption |
| Feature13: Less heat emission |
| Feature14: Excellent thermal management |
| Feature15: Long life span of FAN and PSU |
| Feature16: Green Design, Green Production, and Green Commitment to The Environment |
| Feature17: Maintainability |
| Feature18: Cable-less hot-swappable IOM, power supply, fans and drives |
| Feature19: Work-efficient modular cable-less design |
| Feature20: SCSI Enclosure Services (SES) |
