Promise VTrak J5000 Series J5600SDQS14 16-Bay 3U 12Gb/s SAS Drive Enclosure
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview

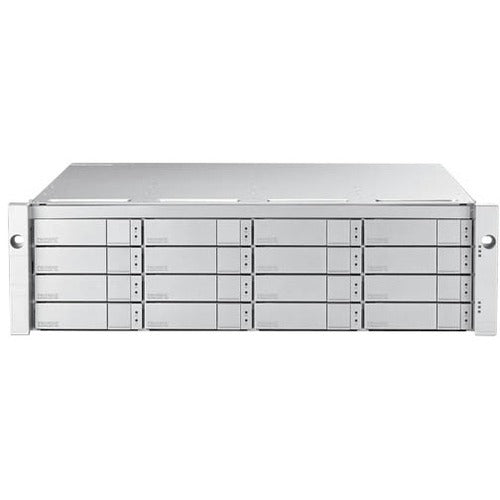

Promise VTrak J5000 Series J5600SDQS14 Drive Enclosure from the J5000 Series is a 3U rack-mountable system with 16 hot-swappable 3.5" drive bays supporting up to 224TB in JBOD configuration. It offers 12Gb/s SAS host interface, dual active/active I/O modules with redundant paths, flexible wide-port configuration, compatibility with SAS and SATA drives, and fully hot-swappable power and cooling units for enterprise-level reliability.
Affordable Enterprise-Level Storage
The VTrak J5000 Series delivers an affordable high performance SAS solution with advanced enterprise level reliability and functionality. The four external 12 Gb/s SAS ports per I/O module provide the connectivity for large capacity solutions requiring multiple cascaded JBODs, and high bandwidth solutions requiring speed. It features fully redundant I/O modules, power supplies and cooling units, combined with a cable-less system design, providing exceptional data availability even during component failures for the enterprise environment.
Supports Hybrid HDD/SSD Arrays
Fully backward compatible with 6 Gb/s SAS/SATA devices, users have the ability to deploy 3 Gb/s, 6 Gb/s, and 12 Gb/s SAS/SATA HDDs and SSDs in the J5000 Series. Efficient power supplies provide up to 90% power efficiency, which improves TCO by conserving power, reducing heat output, and improving cooling costs. The internal 12 Gb/s SAS expander-based architecture also allo
- Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management
- Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs)
- Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers
- 16 hot-swappable 3.5" (LFF) drive bays in a robust 3U chassis
- VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality
Product Specification:
| Host Interface: 12Gb/s SAS |
| Product Type: Drive Enclosure |
| Manufacturer Part Number: J5600SDQS14 |
| Manufacturer Website Address: http://www.promise.com |
| Limited Warranty: 3 Year |
| Weight (Approximate): 84.44 lb |
| Form Factor: Rack-mountable |
| Manufacturer: Promise Technology |
| Product Model: J5600sD |
| Product Name: VTrak J5600sD Drive Enclosure |
| Product Line: VTrak |
| Product Series: J5000 |
| Rack Height: 3U |
| Brand Name: Promise |
| Country Of Origin: Taiwan |
| Environmentally Friendly: Yes |
| Wireless Lan: No |
| Number Of Total Expansion Bays: 16 |
| Number Of 3.5" Bays: 16 |
| Total Hard Drive Capacity Installed: 224 TB |
| Number Of Hard Drives Supported: 16 |
| Number Of Hard Drives Installed: 16 |
| Non Raid Mode: JBOD |
| Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Feature1: Flexible wide-port configuration: Four x4 wide ports, two x8 wide ports or one x16 wide port per IOM and SES-2 compliant enclosure management |
| Feature2: Dual active/active SAS JBOD I/O modules provide redundant data paths to ensure data availability and redundant hot-swappable Field Replaceable Units (FRUs) |
| Feature3: Supports SAS and SATA drives simultaneously and is compatible with leading SAS & SATA drives, HBAs, and RAID controllers |
| Feature4: 16 hot-swappable 3.5" (LFF) drive bays in a robust 3U chassis |
| Feature5: VTrak J5000 Series 12 Gb/s SAS subsystems deliver a high performance SAS solution with advanced enterprise level reliability and functionality |
