PowerDSINE PD-6012/AC/M 12-Port POE MIDSPAN

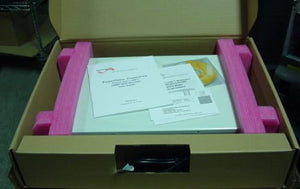

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom
PowerDSINE PD-6012/AC/M 12-Port POE MIDSPAN

PowerDSINE PD-6012/AC/M 12-Port POE MIDSPAN

Price:
$595.00
PowerDsineSKU: 597063
Model Number: PD-6012/AC/M
Condition: New
In stock:  Yes
Quote
No reviews
SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.

Description

This PowerDsine flagship IEEE 802.3af standard compliant Power over Ethernet PD-6012 provides power, as well as data, over standard Ethernet cabling.This midspan eliminates the need for external power supply and its associated AC power cabling, thus providing a highly cost effective, safe and reliable means for powering Voice over IP phones, Wireless LAN access points and IP network video cameras in enterprise installations.

PD-6012/AC/M Product Overview

    Interfaces/Ports

  • Total Number of Network Ports:     12
  • Management Port:     Yes
  • Number of Network (RJ-45) Ports:     12
  • Port/Expansion Slot Details:     12 x Fast Ethernet Network

    Media & Performance

  • Media Type Supported:     Twisted Pair
  • Twisted Pair Cable Standard:     Category 5
  • Ethernet Technology:     Fast Ethernet
  • Network Technology:     10/100Base-TX

    Network & Communication

  • Layer Supported:     2

    Management & Protocols

  • Management:
  • Power Management
  • Remote Management

    Power Description

  • Input Voltage:     110 V AC
  • Input Voltage:     220 V AC

    Physical Characteristics

  • Form Factor:     Rack-mountable
  • Height:     1.8"
  • Width:     17.0"
  • Depth:     11.9"
  • Weight (Approximate):     8.80 lb

    Miscellaneous

  • Additional Information:
  • Remote Power Feeding
  • Centralized Power Distribution
  • Pin Assignment and Polarity: 4/5+ , 7/8-
  • Output Power Voltage: -48 Vdc
  • Thermal Rating: 200 BTU

    • User Port Power:

  • 15.4 W min (Power management)
  • Aggregate Power: 200 W
  • Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3af
  • EIA 568A and 568B
  • Regulatory Compliance: CE

    • Electromagnetic Emission & Immunity:

  • FCC Part 15
  • Class B with FTP cabling
  • EN55022 (CISPR 22) class B with FTP cabling
  • EN55024 (CISPR 24)

    • Safety Approvals:

  • UL/cUL Per EN60950
  • GS Mark Per EN60950

    Warranty

  • Limited Warranty:     90 Day
