Description
NVIDIA Quadro FX Architecture achieves unprecedented performance
Featuring the industry's first top-to-bottom family of PCI Express products targeted for professional CAD, DCC, and Scientific applications, NVIDIA Quadro FX ushers in a new era of unprecedented performance, programmability, precision and quality.
The NVIDIA Quadro FX architecture takes application performance to new levels by featuring an array of parallel vertex engines, a radically new line engine and fully programmable pixel pipelines coupled to a high-speed graphics DRAM bus. Pipeline efficiency is further multiplied by NVIDIA's next-generation crossbar memory architecture, enabling occlusion-culling, lossless depth Z-buffer, and color compression.
Technical Information
- RAMDAC Speed: 400 MHz
- Dual RAMDAC: Yes
- Analog Signal: Yes
- Digital Signal: Yes
- API Supported: OpenGL
- Number of Monitors Supported: 2
Processor & Chipset
- Chipset Line: Quadro
- Chipset Series: FX
- Chipset Model: 3400
Memory
- Standard Memory: 256 MB
- Memory Technology: GDDR3 SDRAM
- Bus Width: 256 bit
Interfaces/Ports
- Host Interface: PCI Express x16
- Audio Line Out: Yes
- DVI: Yes
- Number of DVI Outputs: 2
Software
- Software Included:
- MAXtreme
- POWERdraft
Physical Characteristics
- Height: 7.9"
- Thickness: 2.4"
- Length: 13.4"
- Weight (Approximate): 2.43 lb
Miscellaneous
- Package Contents:

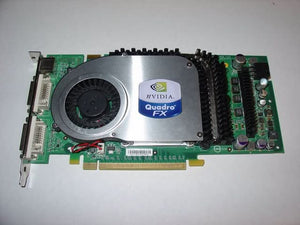

- NVIDIA Quadro FX 3400 PCI Express graphics board
- DVI to VGA Adapters
- Drivers for Windows XP, 2000 & NT support
- Detailed Installation Guide
- Quickstart Installation Guide
- Quadro Application Utilities CD-ROM
- Additional Information:
- Dual-link DVI : 1
- 128-bit IEEE floating-point precision graphics pipeline
- 12-bit subpixel precision
- 8 pixels per clock rendering engine
- 128-bit color
- 32-bit floating point frame buffer
- 12-bit subpixel precision
- Up to 16x FSAA
-
Unified Driver Architecture:
Provides easy installation and manageability through a single unified driver for large scale system deployment. The performance and power of the NVIDIA Quadro FX are built on a solid foundation of quality engineering. This engineering excellence is exemplified by the NVIDIA Unified Driver Architecture (UDA), which is certified for quality by the entire spectrum of CAD and DCC applications. - System Requirements:
- PC compatible with Intel Pentium 4/Xeon or AMD Athlon/Opteron class processor or higher
- PCI Express x16 lane bus
- Microsoft Windows XP, 2000, NT4.0, (Service Pack 6) or Linux
- 128-bit color
- 128MB system memory
- 50MB of available disk space for full installation
- CD-ROM or DVD-ROM drive
- VGA or DVI-I compatible monitor
- Platform Supported: PC
