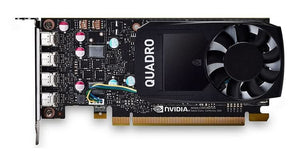

PNY VCQP600-PB NVIDIA Quadro P600 2Gb GDDR5 128-Bit PCI-Express Video Card

Overview

Designed for small workstations, PNY Technology's Quadro P600 Graphics Card is a low-profile graphics card built on NVIDIA's Pascal architecture. The GPU features 384 CUDA cores coupled to 2GB of VRAM with a 128-bit memory bus providing a maximum of 1.195 TFLOPS of single-precision computing power. Using supported APIs and CUDA, that computing performance can translate into high resolution and realistic real-time 2D and 3D graphics rendering or improved computing speed with hardware acceleration. The output panel on this card features four Mini-DisplayPort terminals. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD 5K displays as well. Included with the card are four Mini-DisplayPort to full-size DisplayPort adapters. Other separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, PNY implemented an active fansink cooler. This cooler uses a radial fan to force air through the card's heatsink, dissipating heat from the GPU and other internal components. This cooling configuration is best suited for cases with unrestricted airflow. While the attached low-profile bracket allows for mounting in small-form-factor cases, a full-height bracket is included for installing in standard ATX systems.

Specifications

Model Number:  VCQP600-PB

Brand:  PNY Technologies

Alt Part Number(s):  VCQP600-PB

Product Type:  Video Graphic Adapter

Technical Description

Brand:  PNY Technologies

Model:  VCQP600-PB

GPU Type:  NVIDIA Quadro P600 384

Node Size:  14 nm

Architecture:  Pascal

Interface:  PCI Express 3.0 x16

Memory Interface Width:  128-bit

Interface:  GDDR5

Bandwidth:  64 GB/s

Configuration:  2 GB

Floating Point:  Single Precision Performance: 1.195 TFLOPS, Double Precision Performance: 37.3 GFLOPS

Outputs:  4x Mini-DisplayPort

Maximum Resolution:  DisplayPort: 5120 x 2880, Dual-link DVI: 2560 x 1600, Single-link DVI: 1920 x 1200

Width:  Single-slot

Length:  5.7" / 145 mm

Form Factor:  Half-height, half-length

Power Consumption:  40 W

Product Type:  Video Graphic Adapter

Features

Scalable geometry architecture

Hardware tesselation engine

NVIDIA Giga Thread with dual copy engines

Up to 32K x 32K texture and render processing

Transparent multisampling and super sampling

16x angle independent anisotropic filtering

32-bit per-component floating point texture filtering and blending

64x full scene antialiasing (FSAA)

Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)

Dedicated H.264 and HEVC encoder

Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)

Supports any combination of four compatible connected displays

HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors

12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)

NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support

Underscan/overscan compensation and hardware scaling

*
