Description
Overview

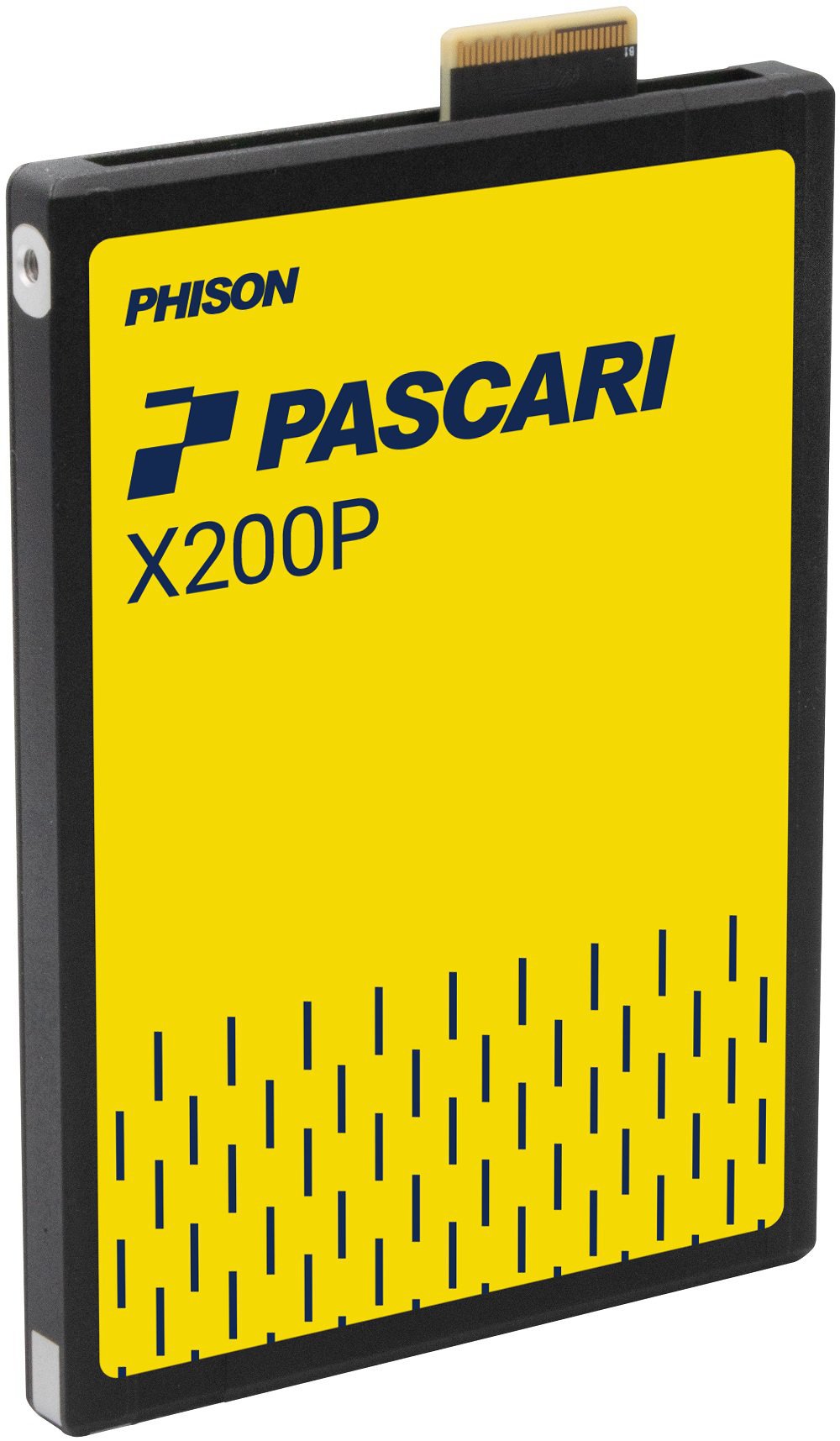

PHISON XX20DH033T84P214T0910 Pascari X200P 3.84TB E3.S PCIe 5.0 2x2 Dual Port SED SSD
Specifications
Model Number: XX20DH033T84P214T0910
Brand: PHISON
Alt Part Number(s): XX20DH033T84P214T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX20DH033T84P214T0910
Capacity: 3.84 TB
Form Factor: E3.S
PCIe Interface
PCIe Gen5x4
Dual port 2x2 lanes
PCIe AER (Advanced Error Reporting)
Compliance
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVM Express Management Interface Rev 1.2
SNIA SFF-TA-1009/1008
Performance
Sequential Read: up to 14,800 MB/s
Sequential Write: up to 8,600 MB/s
Random Read: up to 3,300K IOPS
Random Write: up to 320K IOPS
Power Consumption
128K Active Read (Avg. RMS): 17W
128K Write (Avg. RMS): 21W
4KB Active Read (Avg. RMS): 18W
4KB Active Write (Avg. RMS): 22W
4KB 70/30 Random Read/Write (Avg. RMS): 18W
Idle Power: 5W
Endurance / Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 7,008 TB
Environmental Specification
Temperature Range
Operating: 0°C - 70°C with specified airflow
Non-operating: -40°C - 85°C
Shock:
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms
Vibration:
Operating: 2.17 Grms (7 - 800 Hz)
Non-operating: 16.3 Grms (10 - 2000 Hz)
Drop: 80cm, 6 surfaces
Bending: 50N, 60s
Certifications and Declarations:
CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance: RoHS compliant
Feature Support
LBAF: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
128 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
