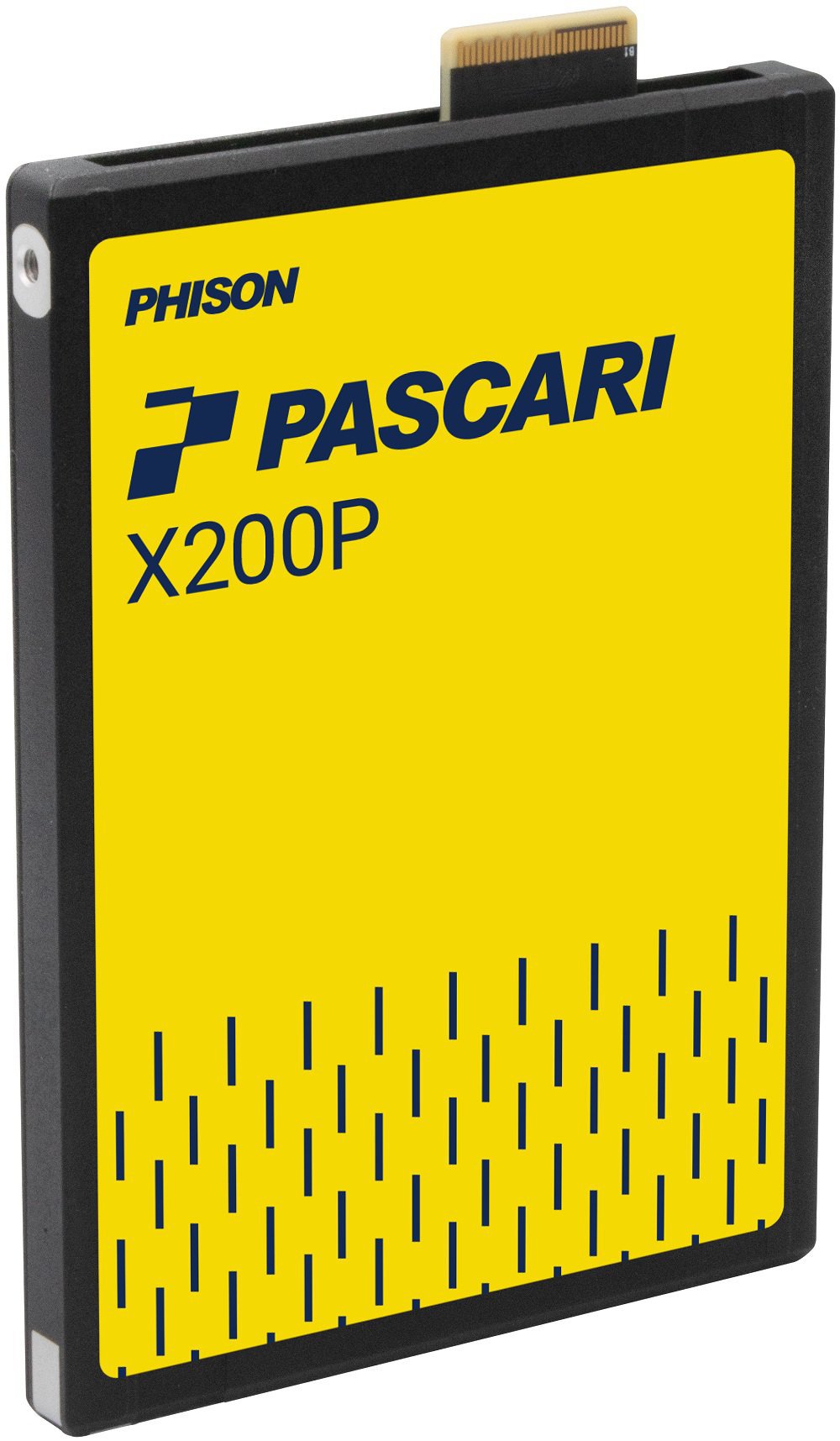

PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB SSD

PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB U.2 PCIE Dual Port ISE SSD

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom

Overview
Tech Spec
Additional Info

XX208H033T84P324T0910 PHISON is a high-performance SSD designed for enterprise and data center environments. It offers 3.84TB of storage with a U.2 15mm form factor and PCIe Gen5 x4 interface, supporting dual port operation for enhanced reliability and speed. Ideal for demanding workloads requiring fast data access, robust error protection, and advanced management features.

Brand	PHISON
Model Number	XX208H033T84P324T0910
Alt Part Number	XX208H033T84P324T0910
Capacity	3.84TB
Form Factor	U.2 15mm
Interface	PCIe Gen5 x4
Protocols	NVMe
Drive Type	Solid State Drive
Read Speed	Up to 14,800 MB/s
Write Speed	Up to 8,600 MB/s
Random Read	Up to 3,300K IOPS
Random Write	Up to 320K IOPS

Series	Pascari X200P
Port Configuration	Dual port 2x2 lanes
Advanced Error Reporting	PCIe AER (Advanced Error Reporting)
Compliance	PCI Express Base Specification Rev. 5.0
NVMe Specification	NVM Express Base Specification Rev. 2.0
NVMe Management Interface	NVM Express Management Interface Rev 1.2
SFF Module Specification	PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7
Power Consumption 128K Active Read	17 W
Power Consumption 128K Write	21 W
Power Consumption 4KB Active Read	17 W
Power Consumption 4KB Active Write	22 W
Power Consumption 4KB 70 / 30 Random Read / Write	18 W
Idle Power	5 W
MTBF	2.5 million hours
UBER	< 1 sector per 10^18 bits read
DWPD	1
TBW	7008 TB
Operating Temperature	0°C - 70°C with specified airflow
Non-operating Temperature	-40°C - 85°C
Shock Operating	500G, 2 ms
Shock Non-operating	1000G, 0.5 ms
Vibration Operating	2.17 Grms (7 - 800 Hz)
Vibration Non-operating	16.3 Grms (10 - 2000 Hz)
Drop	80 cm, 6 surfaces
Bending	50 N, 60 s
Certifications and Declarations	CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Ecological Compliance	RoHS compliant
LBA Formats	512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
Namespaces	128
Port Type	Dual Port
Reservation Support	Yes
Metadata Protection	Yes
Thermal Throttling	Yes
Power Loss Protection	Yes
Encryption	Hardware AES-XTS 256-bit
SMBus Support	Yes
