"Image may differ from actual product"
Roll over image to zoom in Click on image to zoom
This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.
How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!
Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.
Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!
Realtime Inventory: Live inventory updates are not available for this product.
Description
Overview

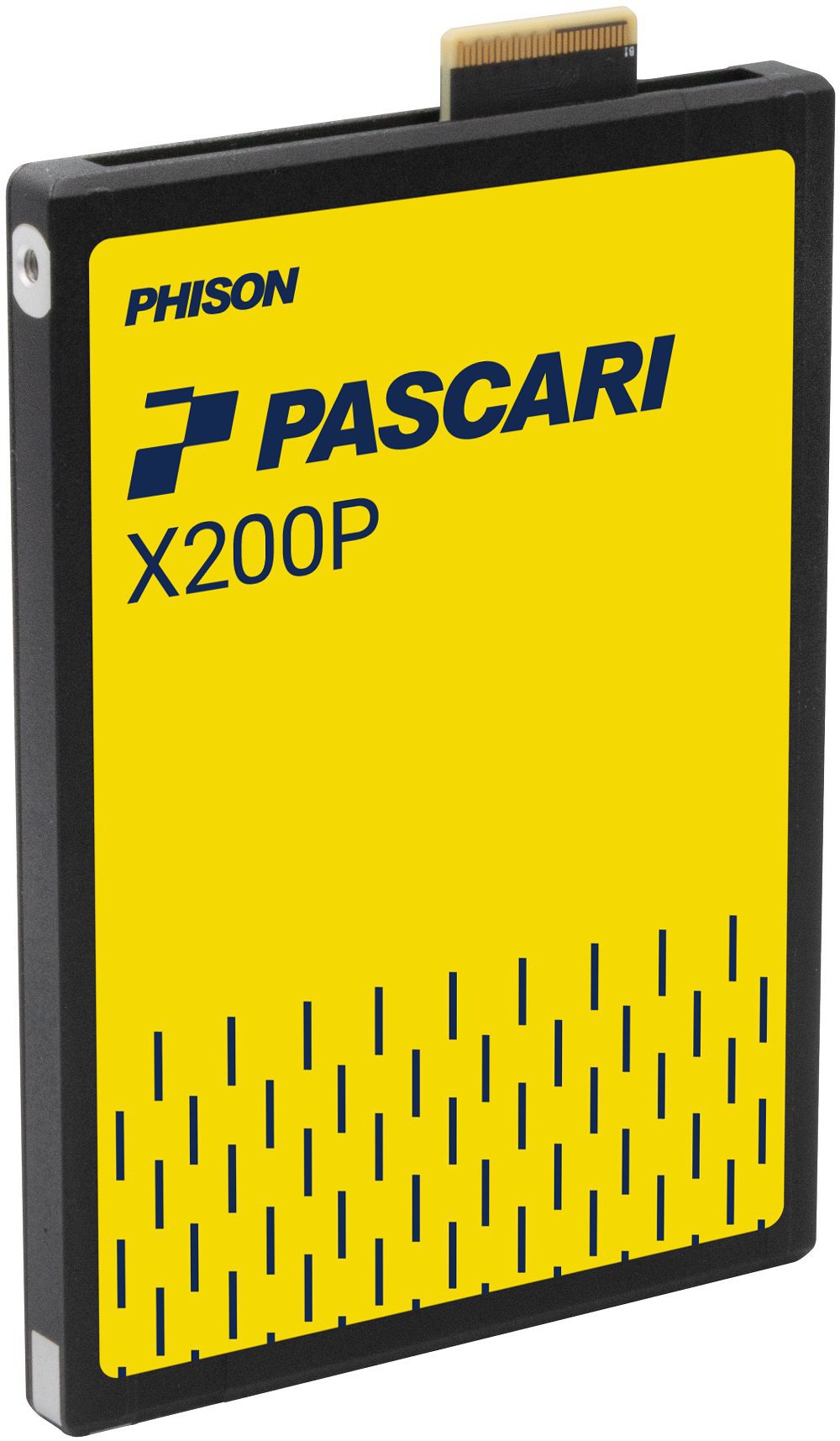

PHISON XP20DH037T68P218T1910 Pascari X200P 7680 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XP20DH037T68P218T1910
Brand: PHISON
Alt Part Number(s): XP20DH037T68P218T1910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP20DH037T68P218T1910
Storage Capacity: 7.68 TB
Form Factor: E3.S
Security: Opal
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCIe Gen5 x4 (Single Port)
Compliance:
- PCI Express Base Specification Rev. 5.0
- NVM Express Base Specification Rev. 2.0
- NVM Express Management Interface Rev. 1.2
- PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Type: 3D eTLC
Flash Configuration: 512 GB x 16
Performance:
- Maximum Sequential 128KB Read/Write (QD=32, Workers=1): 14,000 / 8,500 MB/s
- Maximum 4K Sustained Random Read/Write (QD=64, Workers=8): 3,000,000 / 400,000 IOPS
- Latency 4K Sustained Random Read/Write (µs):
- 60 / 10 (QD=1, Workers=1)
- 85 / 160 (QD=4, Workers=8)
- 190 / 1500 (QD=64, Workers=8) - IOPS Consistency 4KB Sustained Random Read/Write: 95% / 95%
- 4KB Sustained Random Read/Write Quality of Service (QoS=99%):
- 80 / 12 (QD=1, Workers=1)
- 120 / 160 (QD=4, Workers=8)
- 450 / 1500 (QD=64, Workers=8)
Power Consumption:
- Active Power: 25 W
- Inrush Current: 2.5 A
- Idle Power: < 9 W
Endurance (DWPD): 1
Endurance (TBW): 14,016 TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read (3D NAND)
LBA Formats: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Advanced Flash Management:
- ECC
- Static and Dynamic Wear Leveling
- Bad Block Management
- Deallocate (TRIM) Command
- SMART
- Over-Provisioning
- Firmware Upgrade
Temperature Range:
- Operating: 0°C to 70°C (with specified airflow)
- Storage: -40°C to 85°C
Data Retention: 3 months
Enterprise Features Support:
- Namespace
- Single Port
- Reservation
- Metadata Protection
- Thermal Throttling
- Power Loss Protection
- Hardware AES-XTS 256-bit Encryption
- SMBus Support
- NVMe-MI (Management Interface) Support
RoHS Compliance: Yes
Supply Voltage:
- 12V ±10% (Noise level: 240mVp-p, 0–20 MHz)
- 12V Minimum Off Time: 500 ms
- 3.3V Aux ±15%
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
